Zero 364FS Automatic Door Bottom Special Purpose Data Sheet 112644
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
364FS
Part No: Part description:
Automatic door bottom Special purpose
Notes: Provided by:
Customer name: Job no: Date:

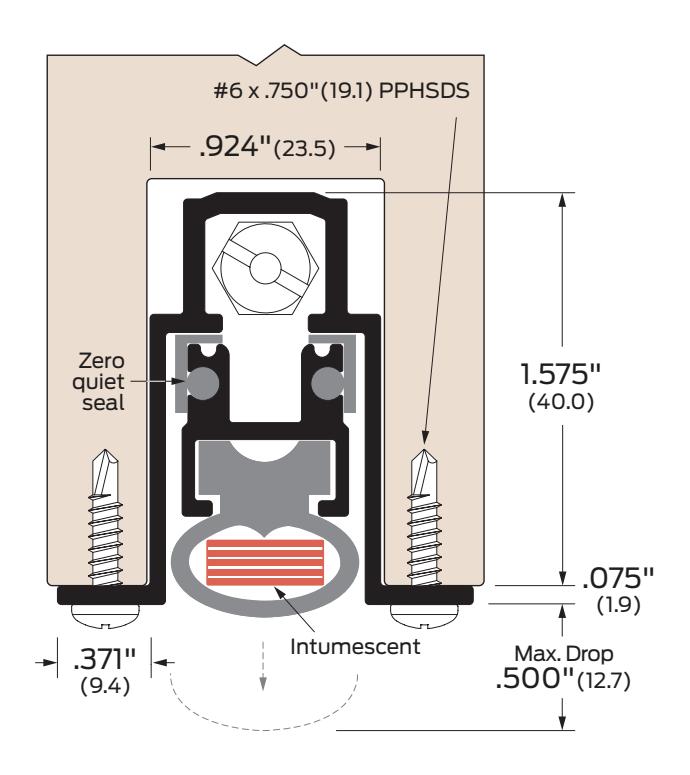

Image may not be shown to scale
Notes:
Mortised. Intumescent fire protection.
| ANSI/BHMA: | Finishes: | Options: | |||
| 364FSAA | R3B3241 | AA | Aluminum clear anodized | Z49 | Removable end cap |
| PL | Pull out | ||||
| NH | No holes | ||||
