Zero 361 Automatic Door Bottom Heavy Duty Data Sheet 112628
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
361
Part No: Part description:
Automatic door bottom Heavy duty
Notes: Provided by:
Customer name: Job no: Date:

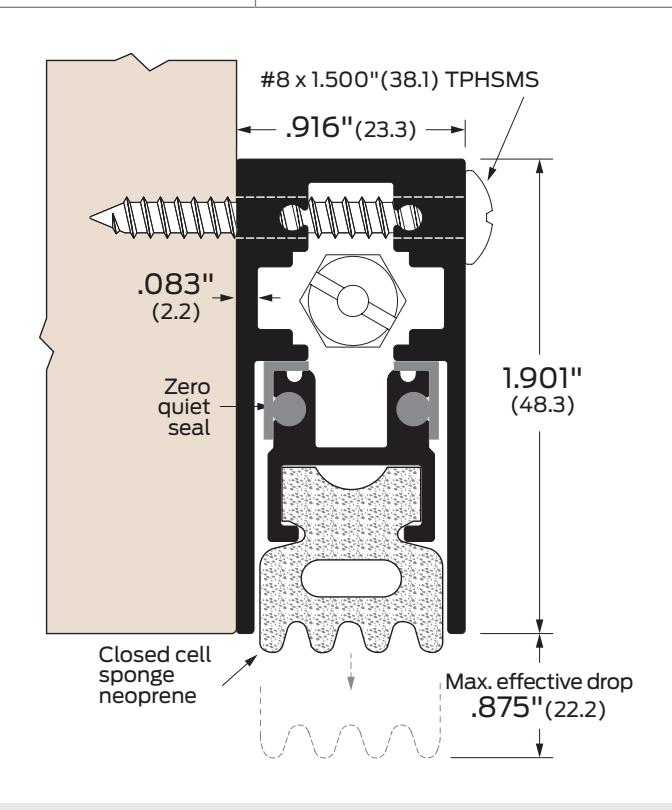

Image may not be shown to scale
Notes:
Surface-mounted applications. Supplied with closed cell sponge neoprene.
| Certifications: | |
|---|---|
| Fire rated-UL10c | |
| Air Infiltration | |
| Sound | |
Finishes: ANSI/BHMA:
AA Aluminum clear anodized BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized 361AA, 361BK, 361D, 361G R3C3341
Options:
LS Light spring PL Pull out SEC Torx security screws LK Locking key NH No holes
