Zero 360 Automatic Door Bottom Heavy Duty Data Sheet 112626
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
360
Part No: Part description:
Automatic door bottom Heavy duty
Notes: Provided by:
Customer name: Job no: Date:

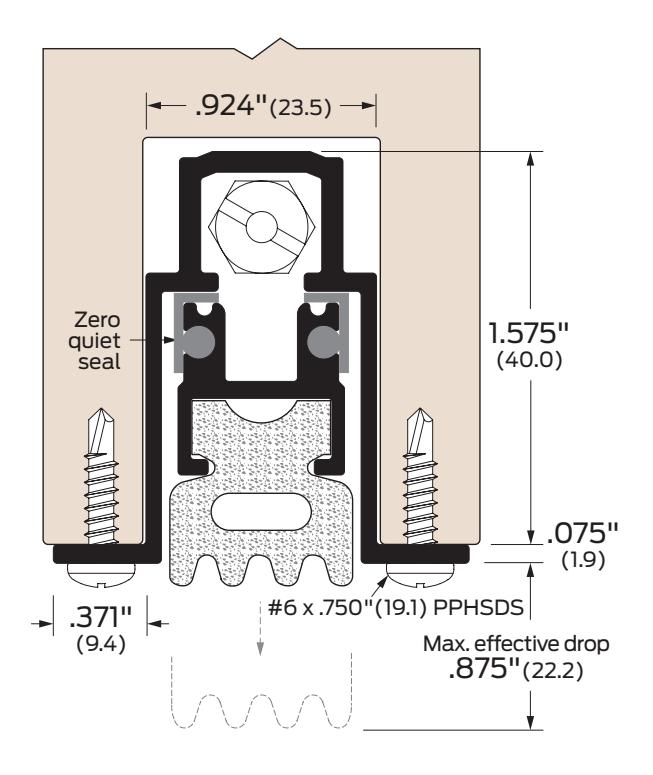

Image may not be shown to scale
Notes:
Mortised. Supplied with closed cell sponge neoprene. Consult your local AHJ for maximum allowable door undercut.
|
Certifications:
Fire rated-UL10c |
ANSI/BHMA:
360AA |
Finishes:
AA R3C3241 |
Aluminum clear anodized |
Options:
LS Light spring Z49 Removable end cap PL Pull out |
||
|---|---|---|---|---|---|---|
| NH | No holes | |||||
