Zero 3552 Automatic Door Bottom Regular Duty Data Sheet 112640

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

3552

Part No: Part description:

Automatic door bottom Regular duty

Notes: Provided by:

Customer name: Job no: Date:

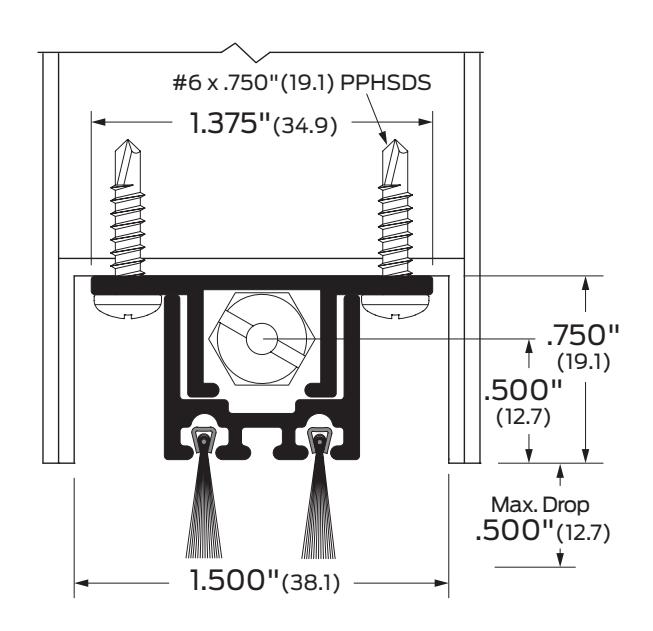

Image may not be shown to scale

Notes:

For use with hollow metal doors. Mortised. Supplied without end caps.

Certifications:	ANSI/BHMA:	Finishes:	Options:
Fire rated-UL10c	3552AA	AA Aluminum clear anodized R3B3261	FLO Air flow/sound block
			PL Pull out
			NH No holes
