Zero 355 Automatic Door Bottom Regular Duty Data Sheet 112638
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
355
Part No: Part description:
Automatic door bottom Regular duty
Notes: Provided by:
Customer name: Job no: Date:

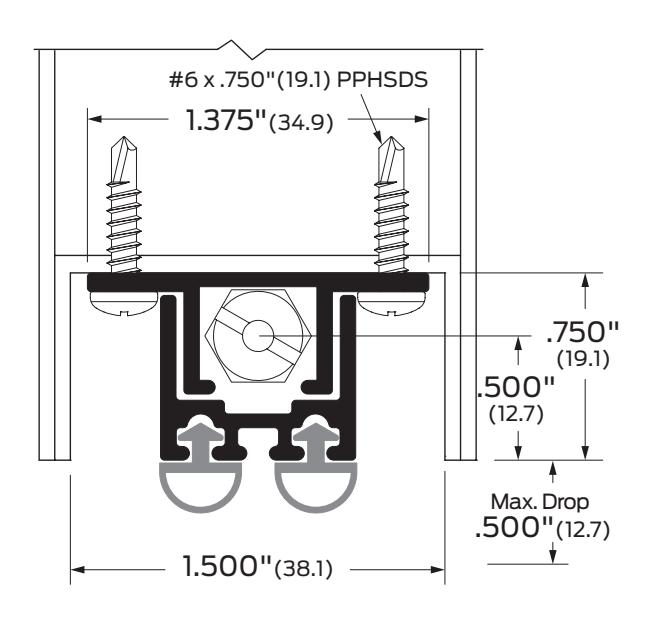

Image may not be shown to scale
Notes:
For use with hollow metal doors. Mortised. Supplied without end caps.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 355A | R3E3241 | AA | Aluminum clear anodized | FLO | Air flow/sound block |
| Air Infiltration | PL | Pull out | ||||
| Sound | NH | No holes | ||||
