2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
352
Automatic door bottom Regular duty
Notes: Provided by:
Customer name: Job no: Date:

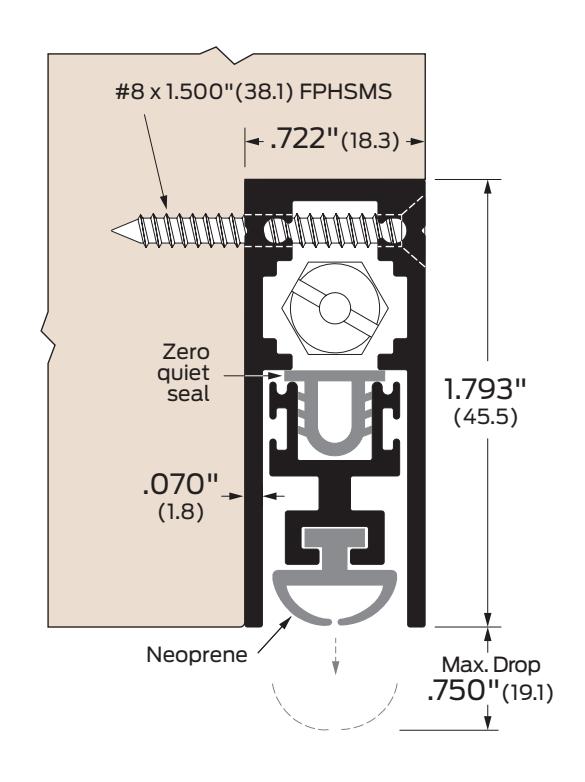

Image may not be shown to scale
Notes:
Semi-mortised. Supplied with solid neoprene extrusion. Lengths 60-96" available as engineering specials.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 352AA, 352BK, 352D, 352G | R3B3441 |
AA
BK |
Aluminum clear anodized
Aluminum black anodized |
LS
PL |
Light spring
Pull out |
|
D
G |
Aluminum dark bronze
anodized Aluminum gold anodized |
SEC
LK NH |
Torx security screws
Locking key No holes |
|||
