2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

351

Part No: Part description:

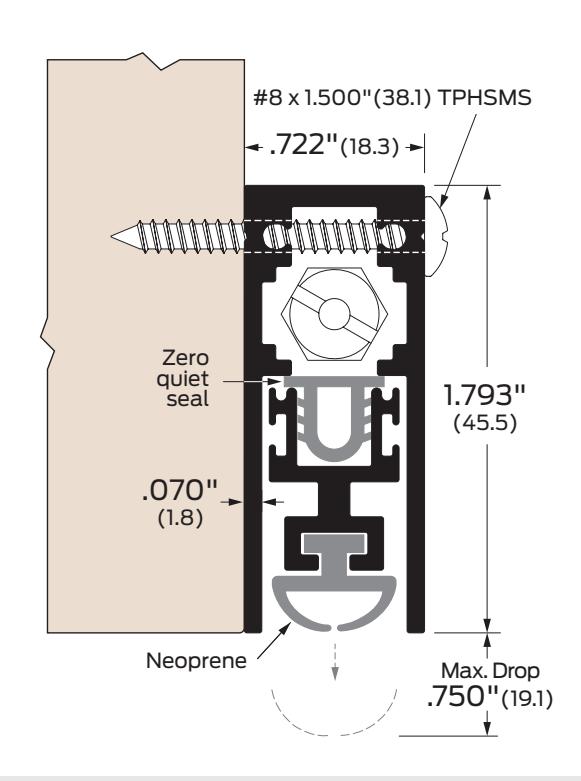

Automatic door bottom Regular duty

Notes: Provided by:

Customer name: Job no: Date:

Image may not be shown to scale

Notes:

Surface-mounted. Supplied with solid neoprene extrusion. Lengths 60-96" available as engineering specials.

Certifications:

Fire rated-UL10c

Air Infiltration

Sound

ANSI/BHMA:

351AA, 351BK, 351D, 351G R3B3341

Finishes:

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze

anodized

G Aluminum gold anodized

Options:

LS Light spring

PL Pull out

SEC Torx security screws

LK Locking key

NH No holes
