Zero 34 38 Meeting Stile Data Sheet 112771

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 • Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

34/38

Meeting stile

Part description:

Notes: Provided by:

Customer name: Job no: Date:

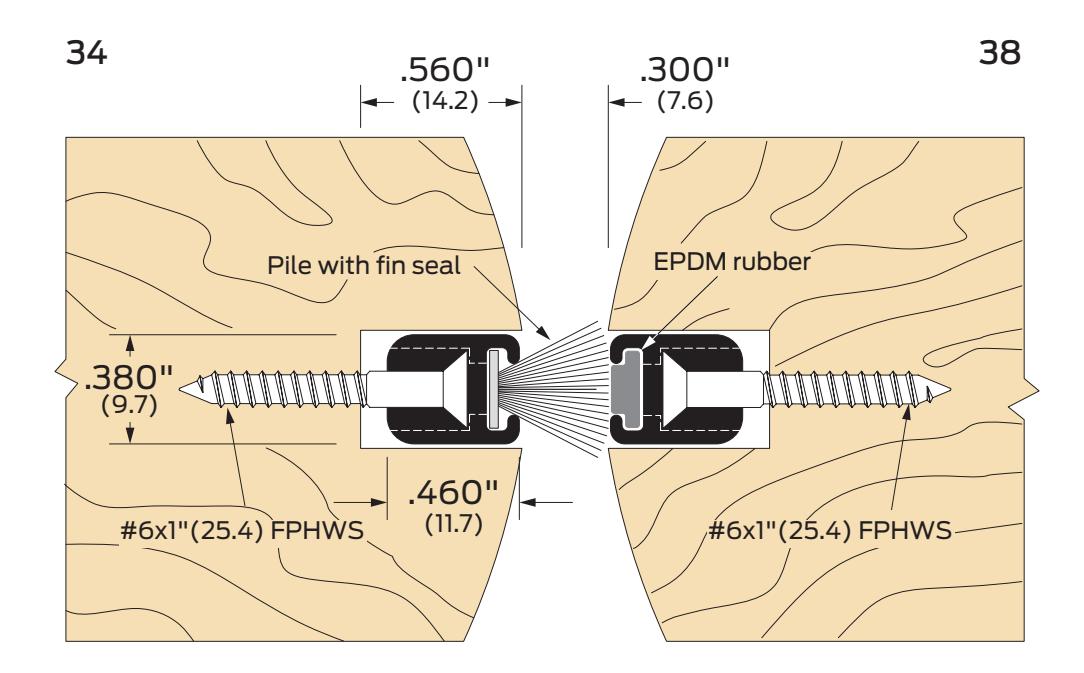

Image may not be shown to scale

Part No:

Notes: Order components separately.

ANSI/BHMA:

34AA, 34BK, 34D, 34G

Finishes:

R3F825

Aluminum clear anodized AA

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized
