Zero 339W Door Sweep Data Sheet 112656

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

339W

Part No: Part description:

Door sweep

Notes: Provided by:

Customer name: Job no: Date:

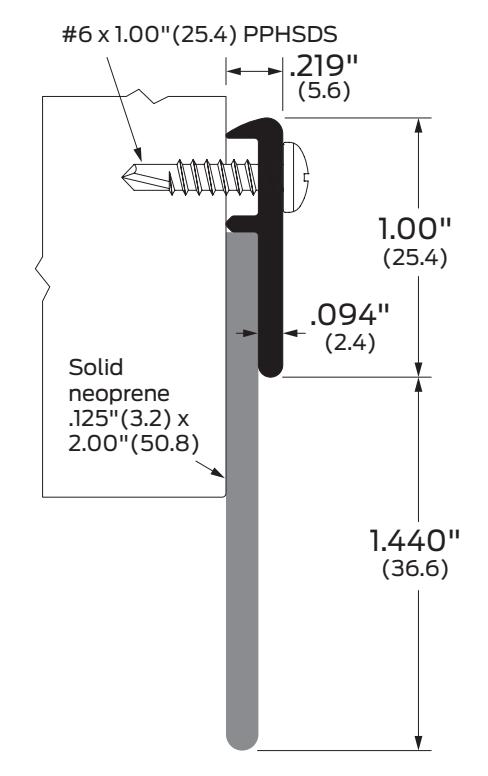

Image may not be shown to scale

Finishes: AA Aluminum clear anodized BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized B Bronze, architectural mill finish B-ORB Oil-rubbed bronze Options: SEC Security screws ANSI/BHMA: 339WAA, 339WBK, 339WD, 339WG R3B434 339WB R1B434 Certifications: Fire rated-UL10c
