Zero 339FS Intumescent Door Sweep & Shoe Data Sheet 112692

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

339FS

Part No: Part description:

Intumescent door sweep & shoe

Notes: Provided by:

Customer name: Job no: Date:

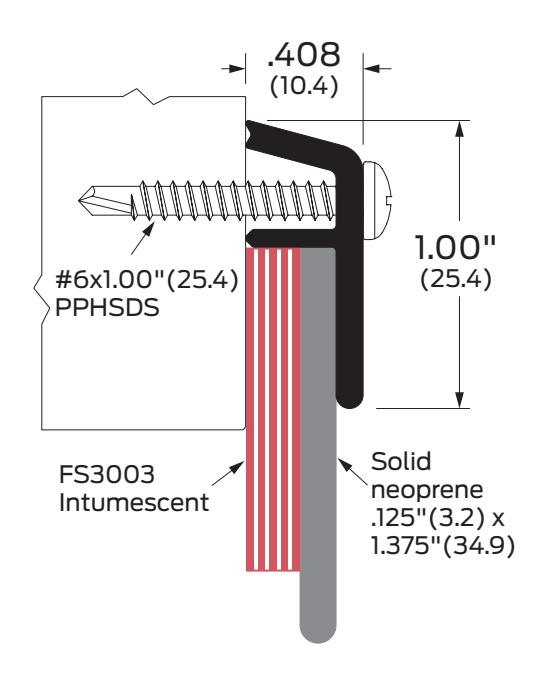

Image may not be shown to scale

Notes:

Intumescent door sweep Restore for fire rating on 20 minute fire-rated swinging flush wood door. For use on doors with maximum undercut of 1.250". ITS-listed to positive pressure UL10C.

Certifications:
Fire rated-UL10c
Warnock Hersey Mark

ANSI/BHMA:

339FS-AA, 339FS-BK, 339FS-D, 339FS-G R3R434

Finishes:

AA Aluminum clear anodized BK Aluminum black anodized D Aluminum dark bronze anodized

G Aluminum gold anodized

Options:

SEC Security screws
