Zero 33 Head & Jamb Gasketing Data Sheet 112737
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
33
Head & jamb gasketing
Notes: Provided by:
Customer name: Job no: Date:

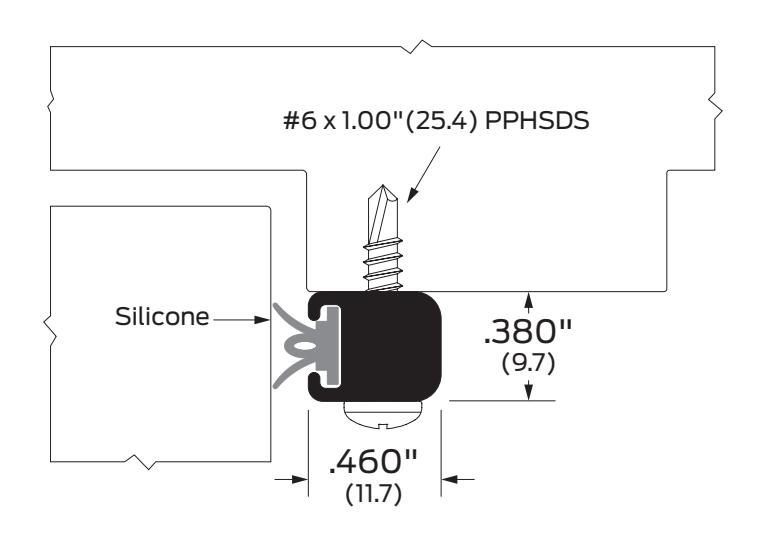

Image may not be shown to scale
Notes:
For applications with very small clearances between door and frame.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 33AA, 33BK, 33D, 33G | R3E164 | AA | Aluminum clear anodized | S | Order as a set |
| Smoke and draft control | BK | Aluminum black anodized | SEC | Security screws | ||
|
D
G |
Aluminum dark bronze anodized
Aluminum gold anodized |
|||||
