Zero 329 Door Sweep Data Sheet 112661

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

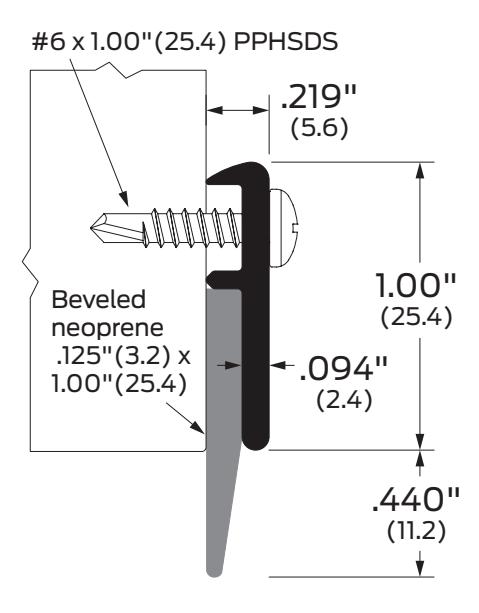

329

Part No: Part description:

Door sweep

Notes: Provided by:

Customer name: Job no: Date:

Image may not be shown to scale

ANSI/BHMA: 329AA, 329BK, 329D, 329G R3B434 329B R1B434 Certifications: Fire rated-UL10c Options: SEC Security screws Finishes: AA Aluminum clear anodized BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized B Bronze, architectural mill finish B-ORB Oil-rubbed bronze
