2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
328
Part No: Part description:
Head & jamb gasketing, door sweep, meeting stile
Notes: Provided by:
Customer name: Job no: Date:

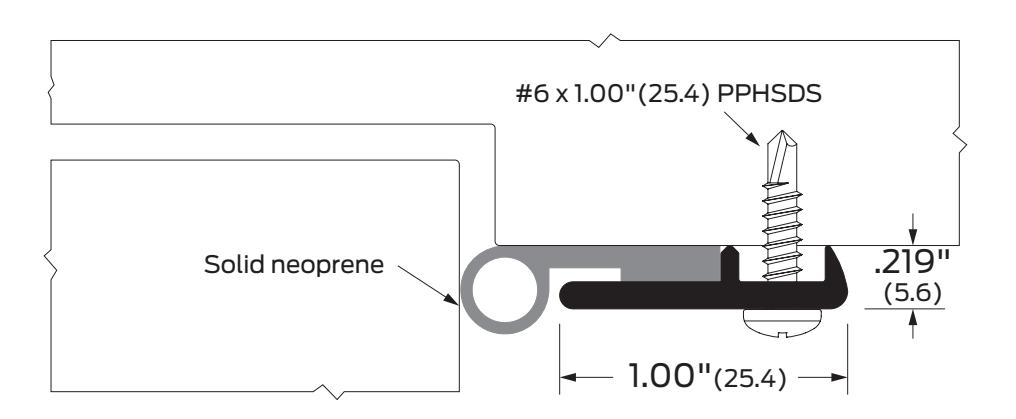

Image may not be shown to scale
Notes:
ZAG option for mental health applications includes security screws
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 328AA, 328BK, | AA | Aluminum clear anodized | ZAG | Ligature resistant gasketing | |
| Smoke and draft control (as head & jamb, door sweep) |
328D, 328G
328B |
R3B164 , R3B434, R3B735
R1B164, R3B434 |
BK | Aluminum black anodized | S | Order as a set |
| Air Infiltration (as head & jamb) | D | Aluminum dark bronze anodized | SEC | Security screws | ||
| Sound | G | Aluminum gold anodized | ||||
| B | Bronze, architectural mill finish | |||||
| B-ORB | Oil-rubbed bronze | |||||
