2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
326
Head & jamb gasketing, meeting stile
Notes: Provided by:
Customer name: Job no: Date:

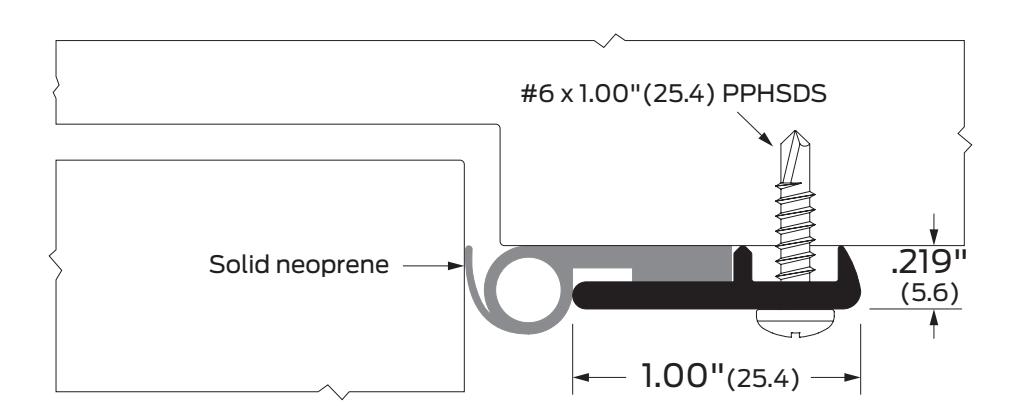

Image may not be shown to scale
Notes:
Extruded Bulb/Finger for double-sealing protection.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 326AA, 326BK, 326D, 326G | R3B164, R3B735 | AA | Aluminum clear anodized | ZAG | Ligature resistant gasketing |
| Smoke and draft control (as head & jamb) | 326B | R1B164 | BK | Aluminum black anodized | S | Order as a set |
| Sound | D | Aluminum dark bronze anodized | SEC | Security screws | ||
| G | Aluminum gold anodized | |||||
| B | Bronze, architectural mill finish | |||||
| B-ORB | Oil-rubbed bronze | |||||
