Zero 321 Automatic Door Bottom Light Duty Data Sheet 112643
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
321
Automatic door bottom Light duty
Notes: Provided by:
Customer name: Job no: Date:

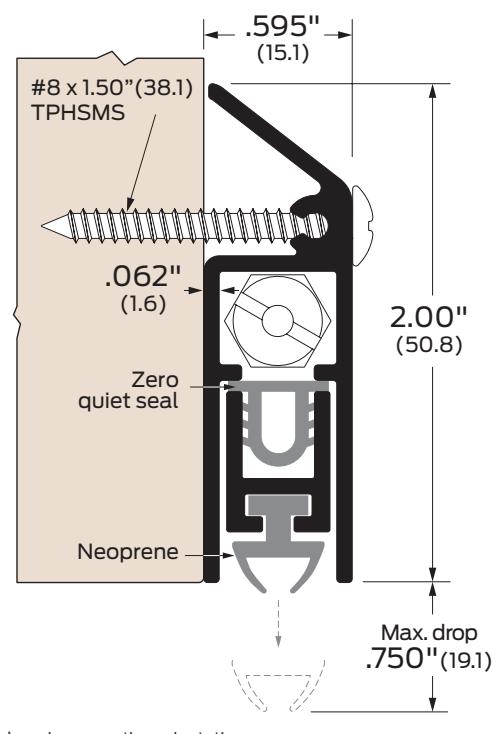

Image may not be shown to scale
Notes:
Surface-mounted. Supplied with two handing holes that allow changing handing without changing mounting orientation. Lengths 60-96" available as engineering specials.
|
Certifications:
Fire rated-UL10c |
ANSI/BHMA:
321AA, 321BK, 321D, 321G |
R3B3341 |
Finishes:
AA BK D G |
Aluminum clear anodized
Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized |
Options:
LS PL SEC NH |
Light spring
Pull out Torx security screws No holes |
|---|---|---|---|---|---|---|
