2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
320
Part No: Part description:
Automatic door bottom Light duty
Notes: Provided by:
Customer name: Job no: Date:

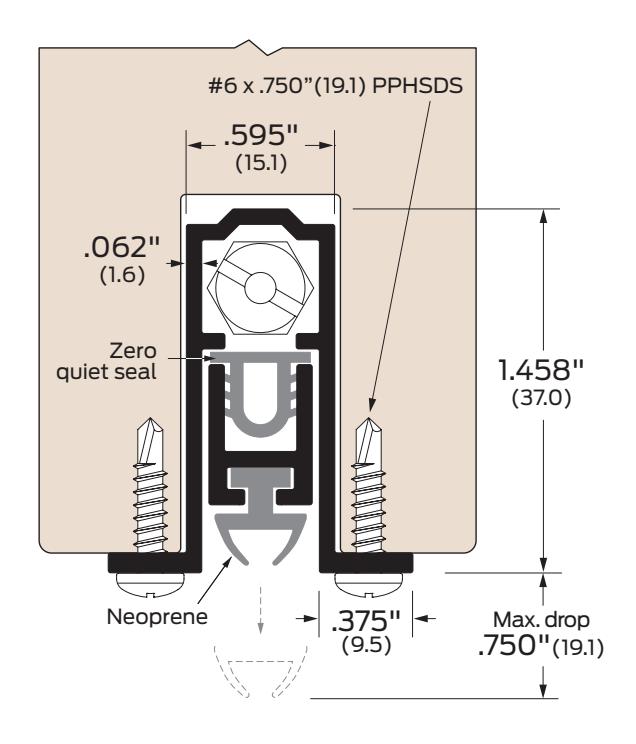

Image may not be shown to scale
Notes:
Mortised. Lengths 60-96" available as engineering specials.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |
|---|---|---|---|---|
| Fire rated-UL10c | 320AA | R3B3241 |
AA
Aluminum clear anodized |
LS
Light spring |
|
PL
Pull out |
||||
|
NH
No holes |
||||
