Zero 32 Head & Jamb Gasketing Data Sheet 112735
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
32
Part No: Part description:
Head & jamb gasketing
Notes: Provided by:
Customer name: Job no: Date:

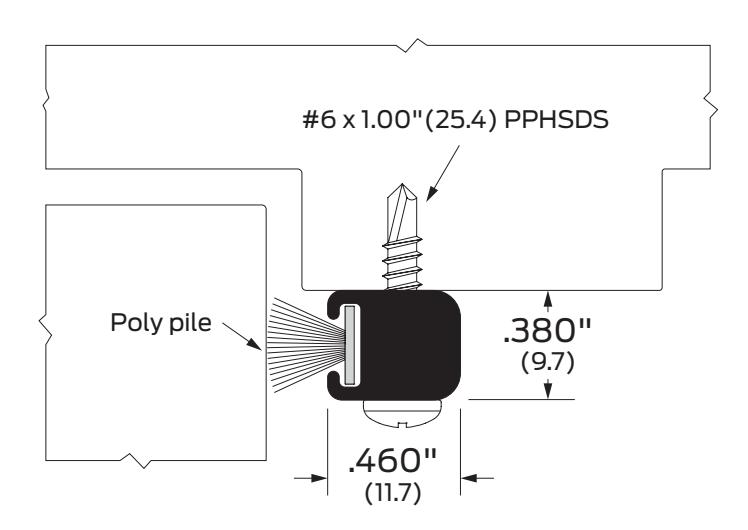

Image may not be shown to scale
|
Certifications:
Fire rated-UL10c |
ANSI/BHMA:
32AA, 32BK, 32D, 32G |
R3F166 |
Finishes:
AA BK D G |
Aluminum clear anodized
Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized |
Options:
S SEC |
Order as a set
Security screws |
|---|---|---|---|---|---|---|
