Zero 318 Head & Jamb Gasketing Data Sheet 112722
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
318
Head & jamb gasketing
Notes: Provided by:
Customer name: Job no: Date:

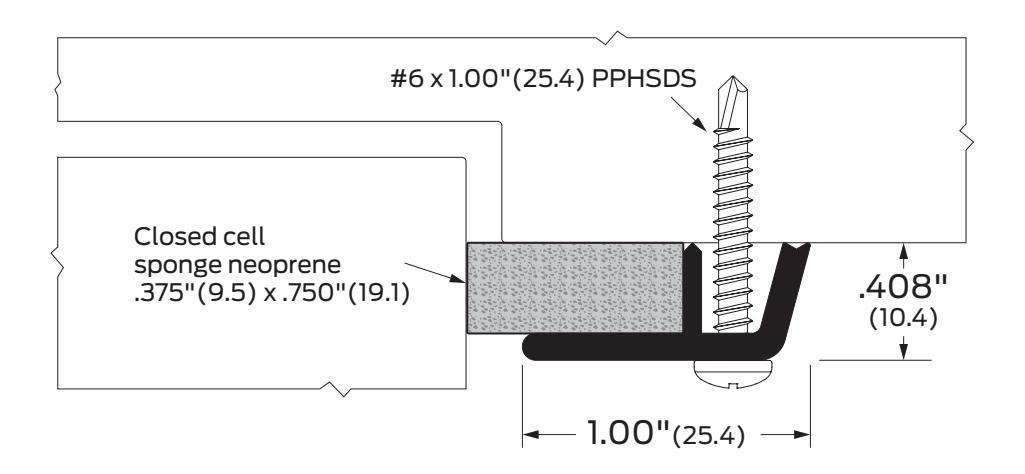

Image may not be shown to scale
Notes:
ZAG option for mental health applications includes security screws.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 318AA, 318BK, 318D, 318G | R3C164 | AA | Aluminum clear anodized | ZAG | Ligature resistant gasketing |
| Smoke and draft control | BK | Aluminum black anodized | S | Order as a set | ||
| Sound | D | Aluminum dark bronze anodized | SEC | Security screws | ||
| G | Aluminum gold anodized | |||||
