Zero 2676 Traction Tread Thresholds Data Sheet 012599
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
2676
Part No: Part description:
Traction tread adjustable thresholds
Notes: Provided by:
Customer name: Job no: Date:

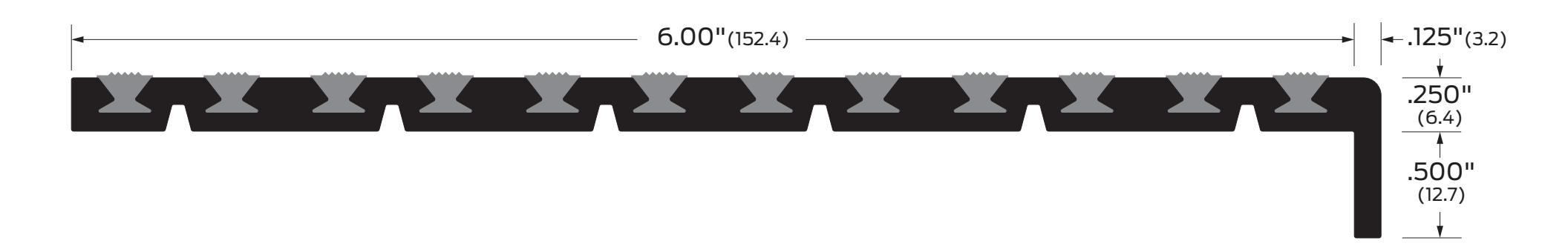

Image may not be shown to scale
Notes:
Supplied without mounting holes.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c |
2676A, 2676D, 2676G, 2376BK
2676A-E, 2676D-E, 2676G-E, 2676BK-E J37280, J37286 |
J37380, J37386 |
A
BK D G |
Aluminum mill finish
Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized |
E
EL |
Epoxy abrasive tread
Photoluminescent and abrasive epoxy tread |
