2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

2673

Part No: Part description:

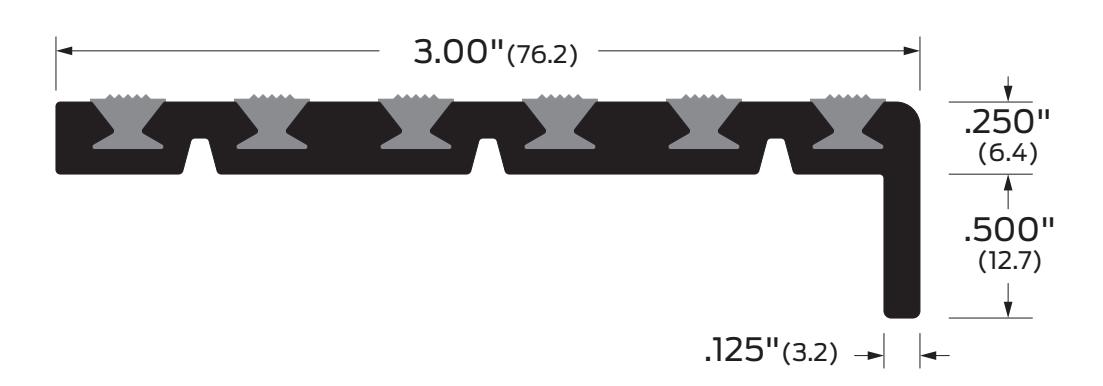

Traction tread adjustable thresholds

Notes: Provided by:

Customer name: Job no: Date:

Image may not be shown to scale

Notes:

Supplied without mounting holes.

Certifications:

Fire rated-UL10c

ANSI/BHMA:

2673A, 2673D, 2673G, 2673BK J37380, J37386 2673A-E, 2673D-E, 2673G-E, 2673BK-E J37380, J37386 2673B J37380, J37386 2673B-E J37380, J37386

Finishes:

A Aluminum mill finish BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized

B Bronze, architectural mill finish

B-ORB Oil-rubbed bronze

Options:

E Epoxy abrasive tread

EL Photoluminescent and abrasive epoxy tread

(not available for ORB finish)
