Zero 25 Interlocking Angle Accessories & Options Data Sheet 112649

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

25 Interlocking angle

Part No: Part description:

Accessories & options

Notes: Provided by:

Customer name: Job no: Date:

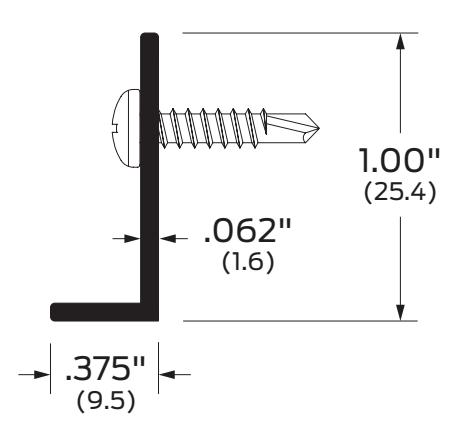

Image may not be shown to scale

Notes:

This accessory can be used interlocking with rain seal model #144 to impede water ingress through perimeter seals on out-swinging doors.

Certifications:

Fire rated-UL10c

Finishes:

AA Aluminum clear anodized BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized

Options:

SEC Security screws
