Zero 1840 Meeting Stile Data Sheet 112787

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

1840

Part No: Part description:

Meeting stile

Notes: Provided by:

Customer name: Job no: Date:

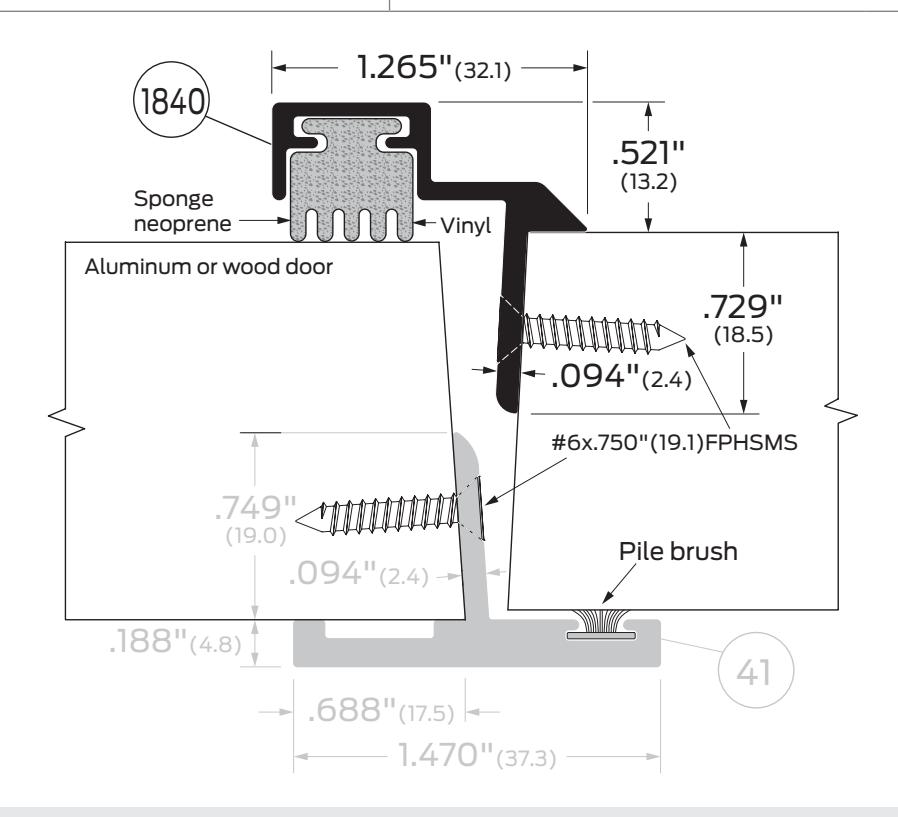

Image may not be shown to scale

Notes: Astragal, inswing.

ANSI/BHMA:

1840AA, 1840BK, 1840D, 1840G R3C635

Finishes:

AA Aluminum clear anodized

BK Aluminum black anodized

D Aluminum dark bronze anodized

G Aluminum gold anodized
