Zero 170 Adjustable Sealing System Jamp Applied Data Sheet 112699

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

170

Part No: Part description:

Adjustable sealing system jamb applied

Notes: Provided by:

Customer name: Job no: Date:

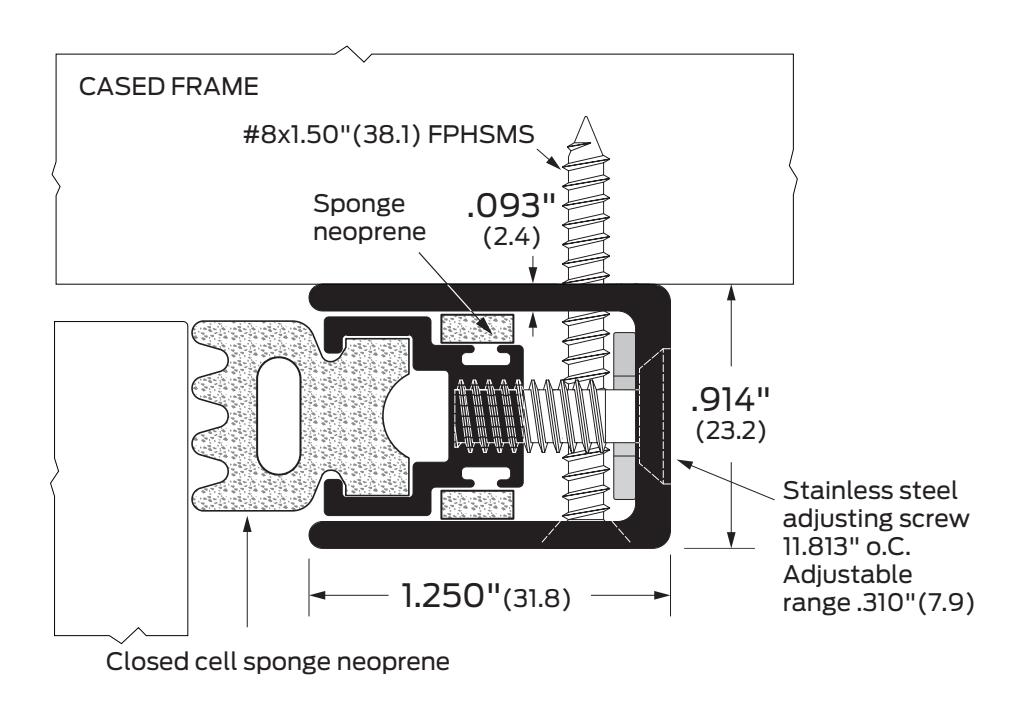

Image may not be shown to scale

Notes:

This model is supplied with mitered corners. 20 minutes as a stop. 180 min when applied to stop.

Certifications:	ANSI/BHMA:		Finishes:		Options:
Fire rated-UL10c Smoke and draft control Sound	170AA, 170BK, 170D, 170G	R3C254	AA BK D G	Aluminum clear anodized Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized	S SEC	Order as a set Security screws
