2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

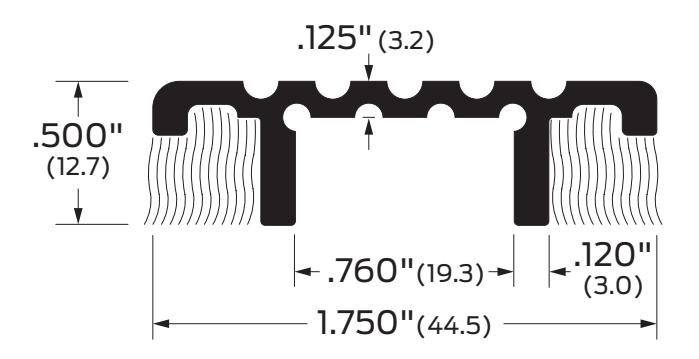

1682B
Part No: Part description:
Carpet divider threshold
Notes: Provided by:
Customer name: Job no: Date:
Image may not be shown to scale
Notes:
Supplied without mounting holes.
| Certifications: | ANSI/BHMA: | Finishes: | Options: | |||
|---|---|---|---|---|---|---|
| Fire rated-UL10c | 1682B | J12140 | B | Bronze, architectural mill finish | E | Epoxy abrasive tread |
| 1682B-E | J12240 | B-ORB | Oil-rubbed bronze | EL |
Photoluminescent and abrasive
epoxy tread |
|
| V3 | Full body strength fill | |||||
| EV3 | Epoxy and full body strength fill | |||||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
|||||
| (not available for B-ORB finish) | ||||||
