2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
1675
Part No: Part description:
Half saddle threshold
Notes: Provided by:
Customer name: Job no: Date:

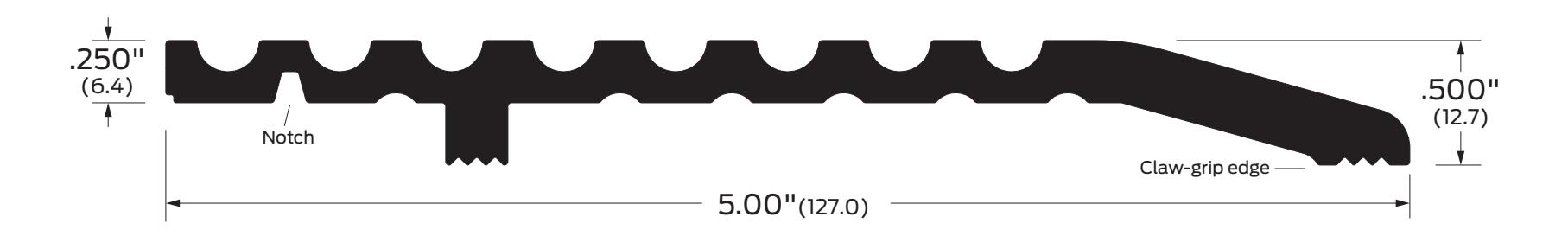

Image may not be shown to scale
Notes:
Notch allows use with adjustable threshold system.
| Notch allows use with adjustable threshold system. | |||||
|---|---|---|---|---|---|
| Certifications: | ANSI/BHMA: | Finishes: | Options: | ||
| Fire rated-UL10c |
1675A, 1675D, 1675G, 1675BK
J33100, J33160, J33180 |
A | Aluminum mill finish | E | Epoxy abrasive tread |
| ADA Accessible |
1675A-E, 1675D-E, 1675G-E, 1675BK-E
J33200, J33260 |
BK
D |
Aluminum black anodized | EL |
Photoluminescent and abrasive
epoxy tread |
| Aluminum dark bronze | |||||
| anodized | V3 | Full body strength fill | |||
| G | Aluminum gold anodized | EV3 | Epoxy and full body strength fill | ||
| ELV3 |
Photoluminescent and abrasive
epoxy tread, full body strength fill |
||||
