Zero 142 Rain Drip Accessories & Options Data Sheet 112650
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
Part No: Part description:
142 Rain drip
Accessories & options
Notes: Provided by:
Customer name: Job no: Date:

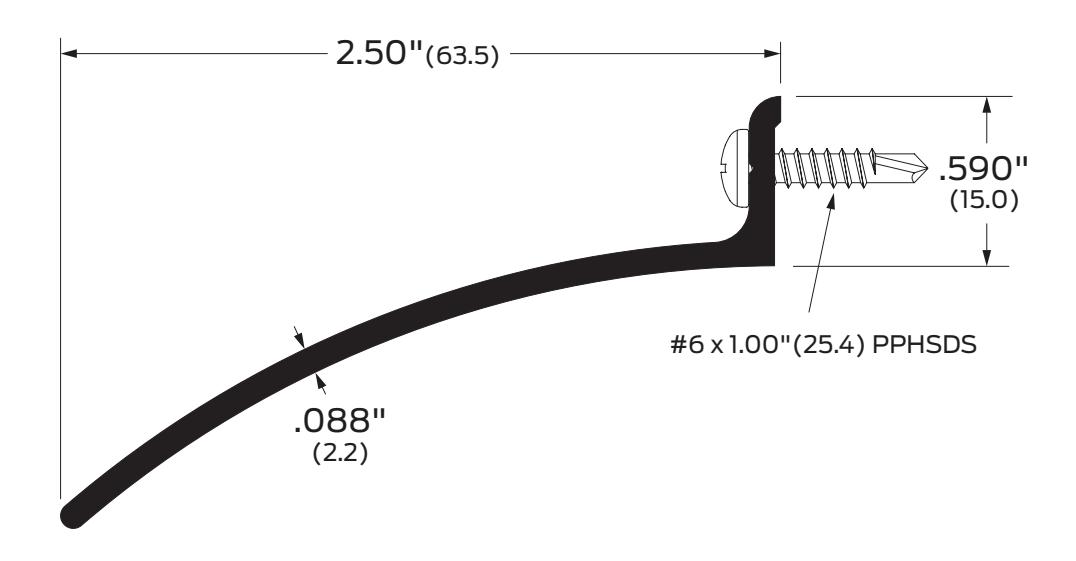

Image may not be shown to scale
|
Certifications:
Fire rated-UL10c |
ANSI/BHMA:
142AA, 142BK, 142D, 142G |
R3Y976 |
Finishes:
AA BK D G |
Aluminum clear anodized
Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized |
Options:
SEC |
Security screws |
|---|---|---|---|---|---|---|
