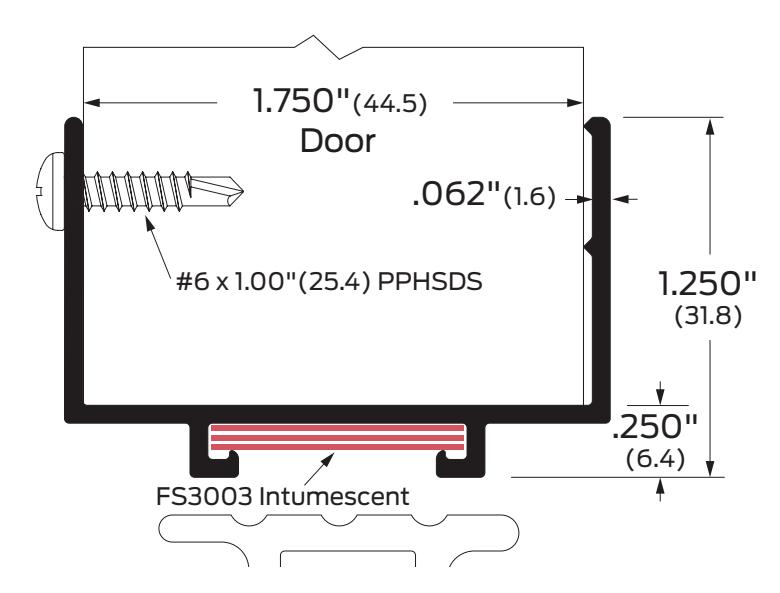

Zero 111FS Intumescent Door Sweep & Shoe Data sheet 112696

2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com

111FS

Part No: Part description:

Intumescent door sweep & shoe

Notes: Provided by:

Customer name: Job no: Date:

Image may not be shown to scale

Finishes: AA Aluminum clear anodized BK Aluminum black anodized D Aluminum dark bronze anodized G Aluminum gold anodized Certifications: Fire rated-UL10c Options: SEC Security screws
