Zero 100 Head & Jamb Gasketing Meetng Stile Data Sheet 112732
Open the original PDF document
View PDF
2720 Tobey Drive, Indianapolis, IN 46219 Tel 1-877-671-7011 n Fax 800-851-0000 Zero.Customer.Support@allegion.com www.zerointernational.com
100
Part No: Part description:
Head & jamb gasketing, meeting stile
Notes: Provided by:
Customer name: Job no: Date:

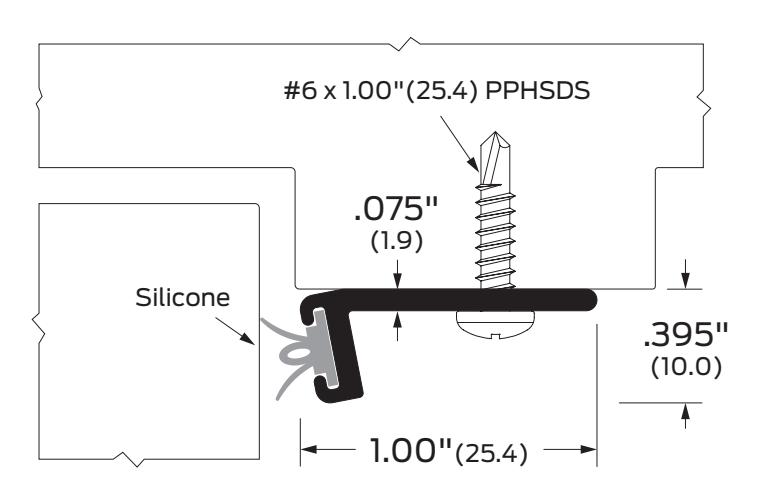

Image may not be shown to scale
Notes:
For applications with very small clearances between door and frame.
|
Certifications:
Fire rated-UL10c Air Infiltration (as head & jamb) |
ANSI/BHMA:
100A, 100BK, 100D, 100G |
R3E164, R3E734 |
Finishes:
A BK D G |
Aluminum mill finish
Aluminum black anodized Aluminum dark bronze anodized Aluminum gold anodized |
Options:
S SEC |
Order as a set
Security screws |
|---|---|---|---|---|---|---|
