Wireless Bridge Access Control bundle with Wireless Bridge

Wireless Bridge

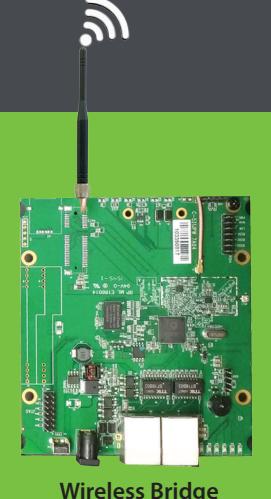

Wireless Bridge for ZKAccess

The ZKAccess Wireless Bridge reduces labor time and cost by eliminating the need to run data cable when connecting ZKAccess door controllers to the network.

Features and Benefits

• Range 2.4 GHz wireless system with up to 300-foot range with nearest wireless router
• Secure communication Password verification, MAC address authentication, SSID suppression and advanced WPA encryption

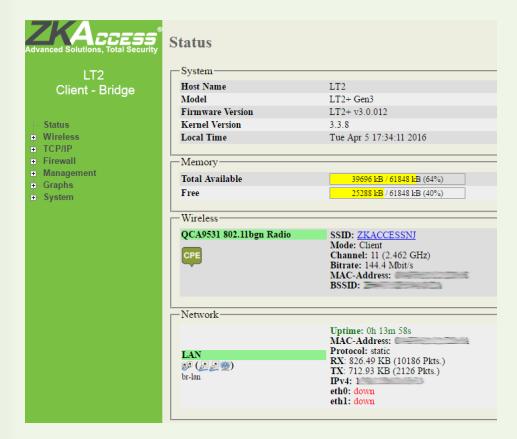

• Simple Management Wireless Bridge has built-in webserver. No software or drivers needed.
• Resilient Low power consumption and up to 15kv Electro Static Discharge protection
• User friendly Power-on LED, Ethernet link LED and Signal strength LED's
• Transparency Wireless Bridge appears to network devices as if an Ethernet cable is connecting the 2 network nodes.

Standards

IEEE802.11g

Data Rate

2.4 GHz up to 54 Mbps

Transmission Range

Up to 300 feet when installed outdoors (typically 150 feet indoors)

Security

MAC Address Filtering, WEP/WPA encryption, Hide SSID in beacons, Layer 2 isolation

Management Configuration

Web-based (HTTP)

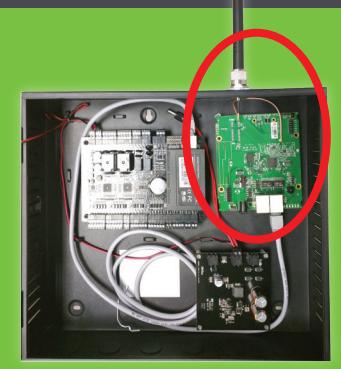

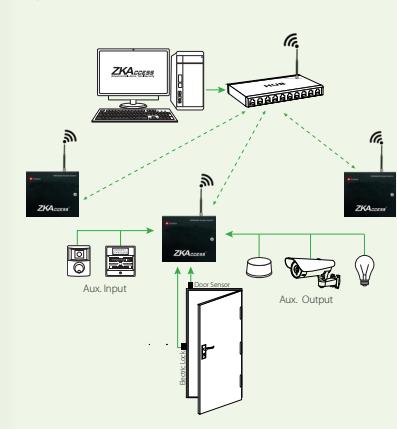

Specifications Built-in webserver Typical installation

ZKTeco USA

6 Kingsbridge Road, Unit 8, Fairfield, NJ 07004 Phone: (862) 505-2101 • Fax: (862) 204-5906 • sales@zkaccess.com • www.zkaccess.com
