ZKTeco USA Walk Through Metal Detector WMD318 18 Zones Standard Data Sheet
Open the original PDF document
View PDF

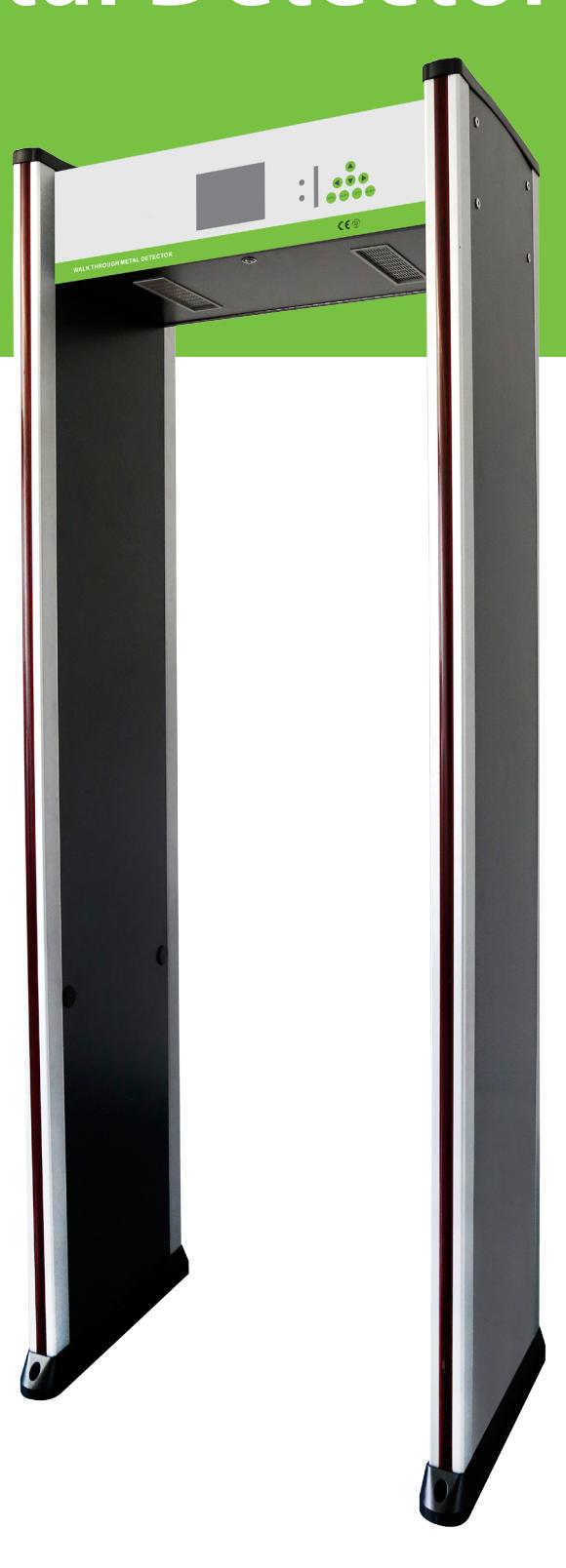

Walk Through Metal Detector WMD318
18 Zones Standard
Features
- Eighteen (18) over-lapping detection zones with multiple alarms
- Sensitivity for each zone is adjustable in increments 0-255
- 5.7 inch (14.5 cm) LCD screen
- Infrared remote control
- Sound & LED alarms located on both sides clearly indicate precisely where metal is detected.
- Automatically counts people and alarms
- Secure operation. Only authorized personnel can access the control panel.
- Easy assembly: Ships with only 2 pieces, cables and 8 screws. Simple to follow instructions.
- Completely safe to operate and walk through. Harmless to heart pacemaker, pregnant women, magnetic storage media, etc.
- Durable fire-retardant construction
- No need for manual calibration. Unit runs self-diagnostics and re-calibrates with each power-on
- Modular design makes parts replacement and maintenance simple and easy.
- 4-8 hours backup battery (optional)
Specifications
| Power Supply | 85-264V AC |
|---|---|
| Working Temperature | -4 F to 122 F (-20° to +50°) |
| Working Frequency | 4-8 kHz |
| Standard External Size | 87(H) x 32(W) x 23(D) inches (2200(H) x 800(W) x 580(D) millimeters) |
| Standard Internal Size | 79(H) x 28(W) x 20(D) inches (2010(H) X 700(W)X 500(D) millimeters) |
| Package Size for Door Panels | 89 x 26 x 10 inches (2260 X 650 X 260 millimeters) stored in one package |
| Package Size for Control Unit | 31 x 15 x 10 inches (780 x 390 x 250 millimeters) stored in one package |
| Gross Weight | 155 lbs (70 kg) |
Application
Airport
Government Office
Bank
Exhibition Center
Hotel
Prison
ZKTeco USA
6 Kingsbridge Road, Unit 8, Fairfield, NJ 07004 Phone: (862) 505-2101 • Fax: (862) 204-5906 • sales@zkaccess.com • www.zkaccess.com
