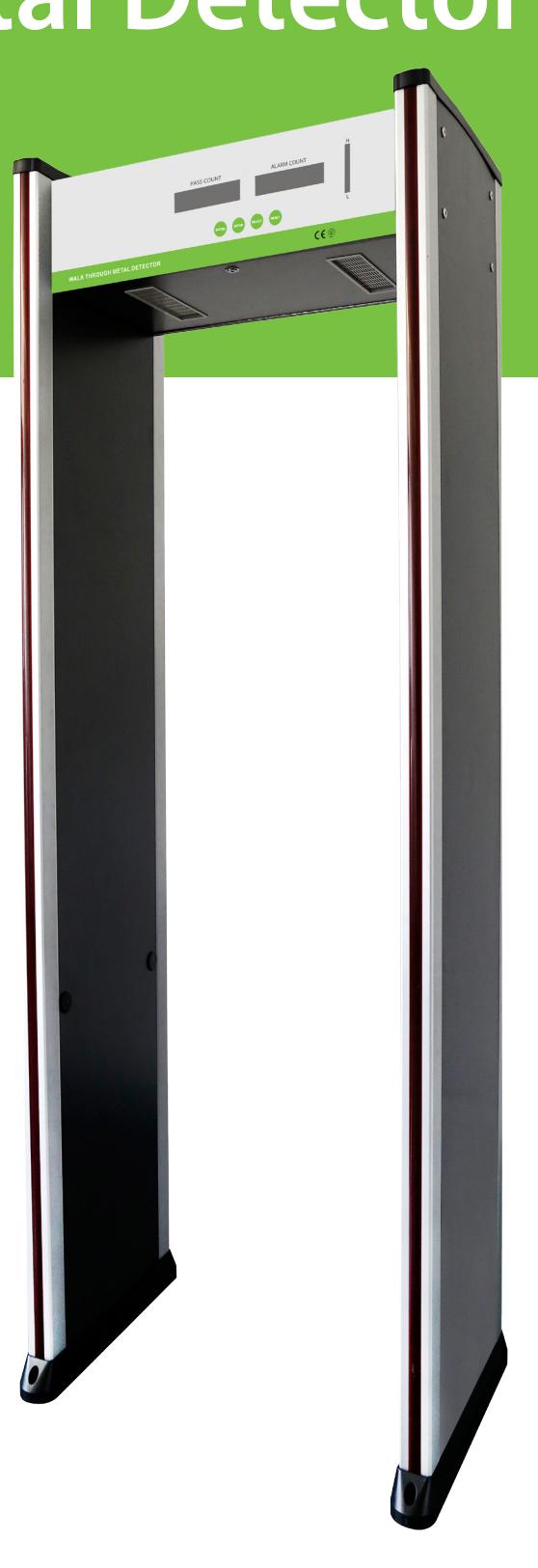

Walk Through Metal Detector WMD118

6 Zones Standard

Features

• Six (6) over-lapping detection zones with multiple alarms
• Sensitivity for each zone is adjustable in increments 0-100
• Sound & LED alarms located on both sides clearly indicate precisely where metal is detected.
• Automatically counts people and alarms
• Secure operation. Only authorized personnel can access the control panel.
• Easy assembly: Ships with only 2 pieces, cables and 8 screws. Simple to follow instructions.
• Completely safe to operate and walk through. Harmless to heart pacemaker, pregnant women, magnetic storage media, etc.
• Durable fire-retardant construction
• No need for manual calibration. Unit runs self-diagnostics and re-calibrates with each power-on
• Modular design makes parts replacement and maintenance simple and easy.
• 4-8 hours backup battery (optional)

Specifications

85-264V AC
-4 F to 122 F (-20° to +50°)
4-8 kHz
87(H) x 32(W) x 23(D) inches (2200(H) x 800(W) x 580(D) millimeters)
79(H) x 28(W) x 20(D) inches (2010(H) x 700(W) x 500(D) millimeters)
89 x 26 x 10 inches (2260 x 650 x 260 millimeters) stored in one package
31 x 15 x 10 inches (780 x 390 x 250 millimeters) stored in one package
155 lbs (70 kg)

Application

Airport

Government Office

Bank

Exhibition Center

Hotel

Prison

ZKTeco USA

6 Kingsbridge Road, Unit 8, Fairfield, NJ 07004 Phone: (862) 505-2101 • Fax: (862) 204-5906 • sales@zkaccess.com • www.zkaccess.com
