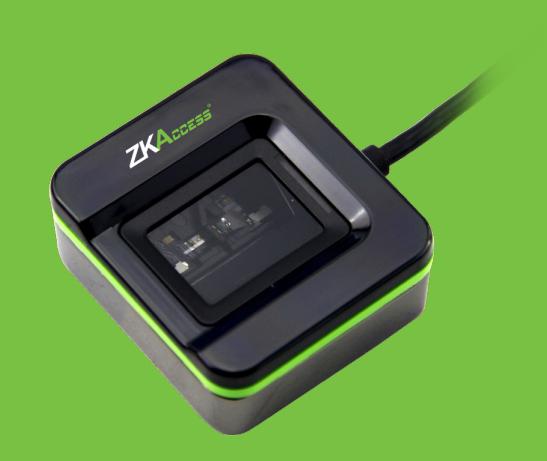

SLK- 20R

USB Fingerprint Enrollment Reader

SLK-20R is a next-generation desktop fingerprint enrollment reader which is FBI Certified: PIV Specification, Mobile ID FAP 20.

Developed in our new Silicon Valley research lab, SLK-20R is designed to enroll users' fingerprints from a computer when using either ZKBioSecurity software or to our OP-200 fingerprint reader's built-in webserver.

SLK-20R achieves the highest level of image capture quality possible and its stylish ergonomic design makes SLK-20R very comfortable to use when enrolling and/or matching users' fingerprints.

Features

• • Large image capture area 0.6 x 0.8 inches (15.24 x 20.32 mm)
• • Durable glass touch surface
• • Fast capture. 12 fps frame rate
• • USB 2.0 High Speed Communication
• • Multicolor LED bar for status indication

• • Compact size
• • Ambient light rejection
• • Low Power Idle Mode
• • -4° to 130°F (-20º to 55ºC) operating temperature range

Specifications

Sensor Type	Optical
Touch Surface Area	0.65 x 0.9 inches / 16.5x 23mm
Image Capture Area	0.6 x 0.8 inches / 15.24 x 20.32 mm (FAP20)
Image Size	300 x 400
Resolution(dpi)	500
Interface	USB 2.0, compatibale with USB 1.1
Operating Systems	Windows xp/Vista/7/8/10(32/64 bit), Android
Supply Voltage	5V, supplied by USB
Operating Environment	4° to 130°F (-20° to 55°C) operating temperature range; 90% relative humidity

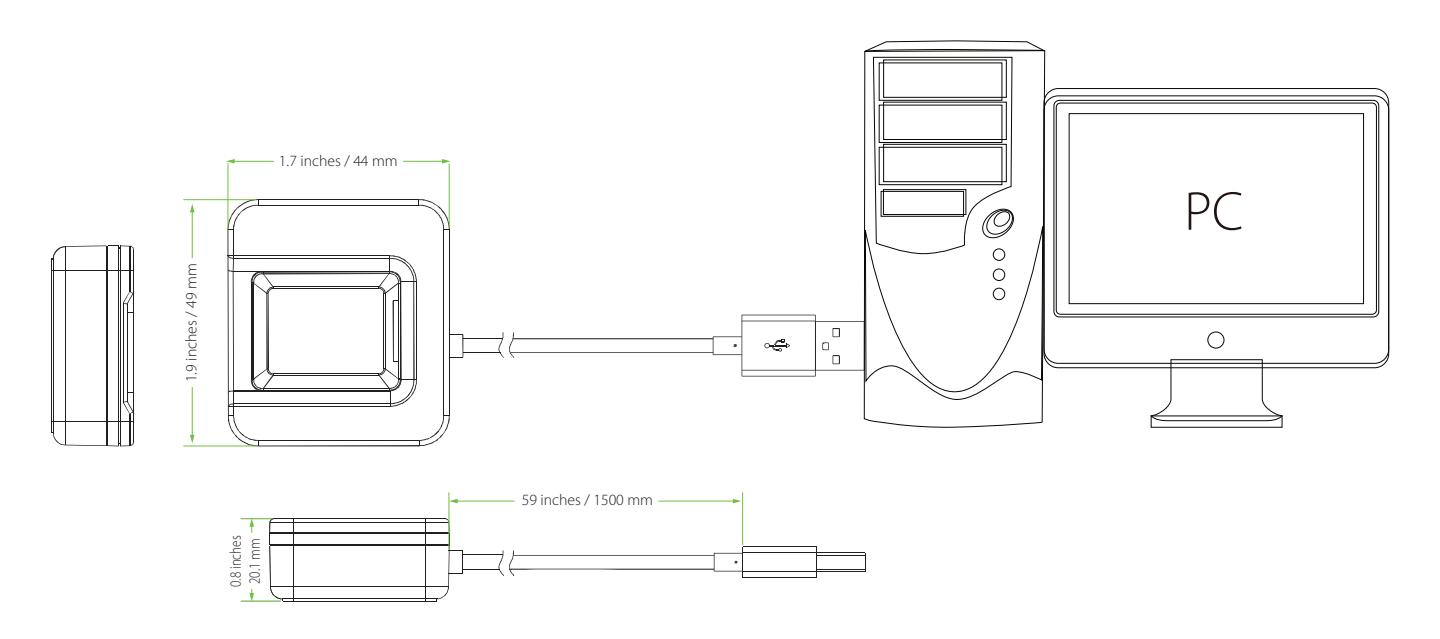

Dimensions	1.9(l) x 1.7(w) x 0.8(d) inches / 49(l) x 44(w) x 20.1(d) mm

Desktop Connection
