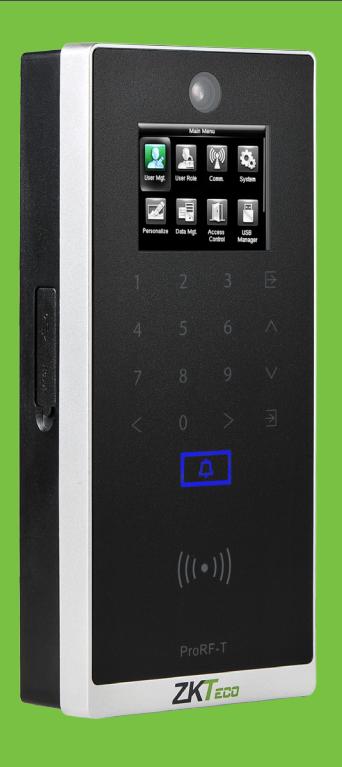

ProRF-T RFID Access Control Reader

ProRF-T is a next-generation RFID access control reader with an extremely high card identification & matching rate due to its ZMM220 1.2 GHz processor.

RFID Performance:

Multiple Verification Modes include RFID and/or PIN verification.

Communication:

Weigand output for connecting to access control panel and Ethernet port for fast and reliable network communication.

Capacity:

Stores up to 50,000 cards. Data can be backed up to a USB flash drive and transferred to another ProRF-T in the absence of network connectivity.

Easy Operation and Management:

Works without a computer. Complete setup and programming can be done via the ProRF-T keypad and embeded firmware. Audio-Visual Indication for acceptance and rejection of valid/invalid cards and passwords.

Options:

Internal Proximity Card or Mifare Card reader allows dual factor authentication for access control.

Full Access Control Built In:

Relay Outputs for electric lock and alarm. Inputs for door status sensor and request to exit hardware. Supports multiple time zones and personnel groups for programming valid entry zones.

For Software Developers:

Free SDK and development tools are available for developers/partners who wish to integrate ProRF-T with any application which requires verifying people. Custom development is also available for OEM partners upon request.

Built-in Camera:

Stores up to 7,000 event snapshots and up to 3,000 user photos

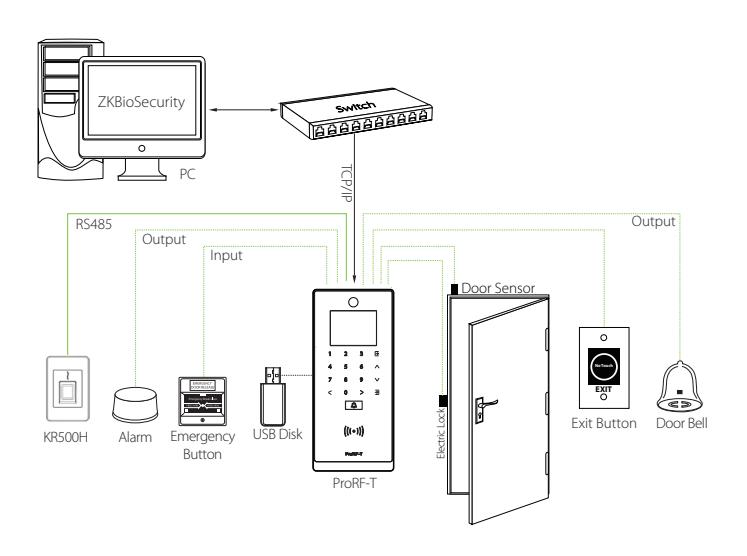

Configuration

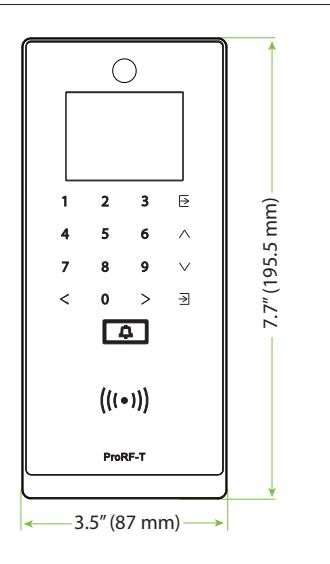

Dimensions

Specifications

Capacity

Cards: 50,000

Transactions: 100,000

Access Control Interface

Lock Relay Output Alarm Output/Auxiliary Input Exit Button/Door Sensor Doorbell Output

Communication

TCP/IP, RS485 (for slave reader) USB Host Wiegand Input/Output

Hardware

2.4 Inch TFT-LCD Touch Screen 125 kHz ZKAccess Card Reader Tamper Switch Alarm

Standard Functions

Access Levels/Groups/Holidays DST/Bell Schedule Duress Mode (Password) Anti-Passback Record Query Custom Wallpaper & Screen Saver

Software Compatibility ZKBioSecurity

Additional Info

Working Temperature: $14^\circ$ F to $122^\circ$ F (- $10^\circ$ C to $50^\circ$ C) Dimensions: $7.7 \times 3.5 \times 1.4$ inches ( $195.5 \times 87 \times 35$ mm) Package Includes: 12V 3A Power Supply
