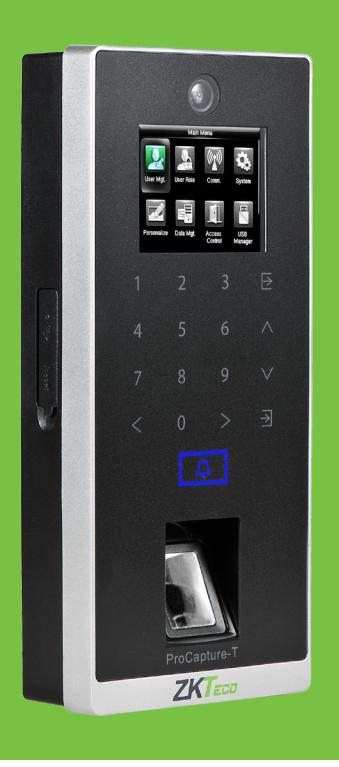

ProCapture-T

Fingerprint Access Control Reader

ProCapture-T is a next-generation access control reader utilizing advanced SilkID fingerprint sensor technology.

Biometric Performance:

Reliable, durable and highly accurate SilkID fingerprint sensor with latest fingerprint matching algorithm which provides less than 1.5 second user recognition.

Capacity:

Stores up to 6,000 fingerprint templates and 10,000 cards. Data can be backed up to a USB flash drive and transferred to another ProCapture-T in the absence of network connectivity.

Easy Operation and Management:

Works without a computer. Complete setup and programming can be done via the ProCapture-T keypad and embeded firmware. Audio-Visual Indication for acceptance and rejection of valid/ invalid fingerprints, cards and passwords.

Options:

ProCapture-T can be configured with optional internal modules which read HID Prox, HID iclass or 13.56 MHz Mifare cards.

Communication:

Weigand output for connecting to an access control panel and Ethernet port for fast and reliable network communication.

Full Access Control Built In:

Relay Outputs for electric lock and alarm. Inputs for door status sensor and request to exit hardware. Supports multiple time zones and personnel groups for programming valid entry zones.

For Software Developers:

Free SDK and development tools are available for developers/partners who wish to integrate Pro-Capture-T with any application which requires verifying people. Custom development is also available for OEM partners upon request.
