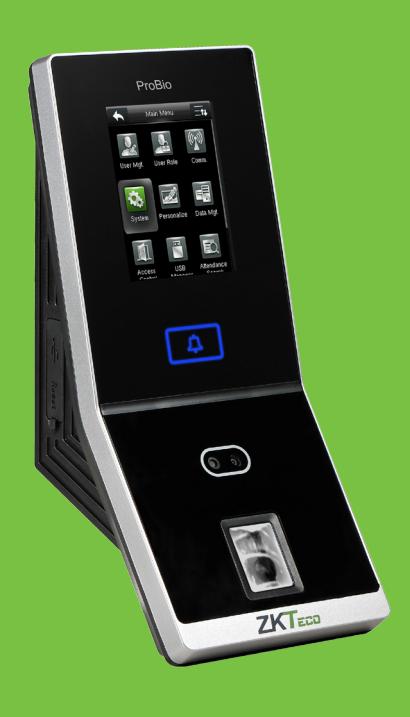

ProBio-ID

Multi-Biometric Face & Fingerprint Access Control Reader

ProBio-ID is the first access control reader to apply the most advanced SilkID fingerprint and face recognition technology together. ProBio-ID can operate in both bright light and total darkness.

Multi-biometric technology:

Identify or verify users by their face, fingerprint, proximity card or PIN/password... or any combination, all conveniently from a single device. Built-in infrared light source enables operation in dimly lit rooms.

Communication:

ProBio-ID installs easily on your network having both TCP/IP and RS485 serial ports. Its USB port allows for offline data backup and management when the network is unavailable.

Display/Audio:

Stunning 3-inch color TFT touch screen provides ease of use and rich user experience with intuitive and user friendly GUI. Includes both voice and visual prompts which indicate the acceptance or rejection of fingerprint, face, prox card or PIN/Password.

Capacity:

Supports one to many (1: N) matching for up to 2,000 faces and 4,000 fingerprint templates and 10,000 cards.

Options:

ProBio-ID can be configured with optional internal modules which read HID Prox, HID iclass or 13.56 MHz Mifare cards.

Access control:

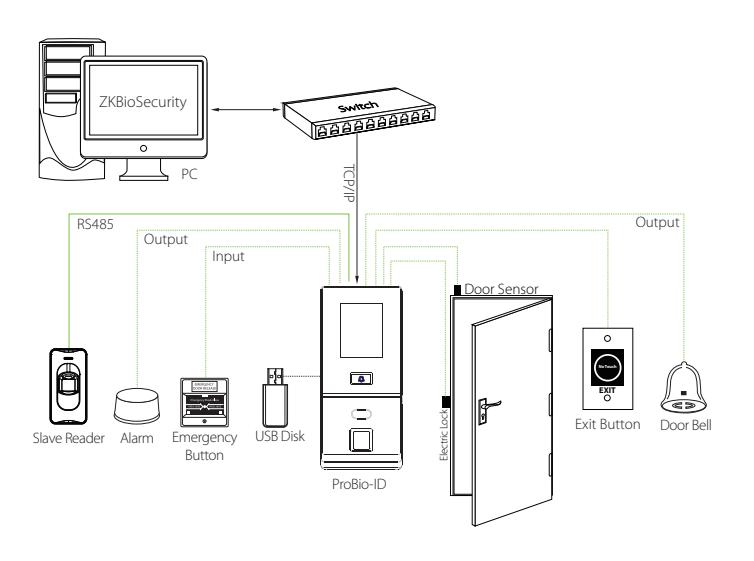

Contact Relays for door locks, exit button, alarms & bell. Supports 50 time zones, 99 groups and 10 unlock combinations. Wiegand IN and OUT ports can be used to connect ProBio-ID to any ZK or 3rd party access control panels and peripherals.

For Software Developers:

Free SDK and development tools are available for developers/partners who wish to integrate ProBio-ID with any application which requires verifying people. Custom development is also available for OEM partners upon request.
