PTE-1 REX (Request to Exit) switch

Description

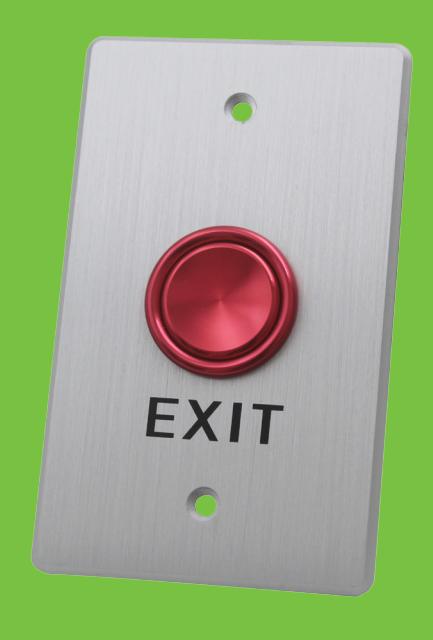

The new PTE-1 exit switch connects to any 12V access controller and provides users FAST SIMPLE door egress. It's small, lightweight, IP68-waterproof and has a simple Red/Green LED so users can see it's status. PTE-1 is included in ZKAccess door kits and can be purchased separately, as well.

Wiring Diagram

Red — + 12V DC

Black — −

Yellow NC

White — COM

Green — NO

Specificaton

Dimensions: 114L x 70W x 16H(mm)

Voltage: 12-24V

Current: Standby 30mA

Operation: 70mA

Output Contact: NO/NC/COM

Current Rating: 1A @ 30VDC 0.5A @ 125VDC

Waterproof Level: IP-68

LED Status: Red: Standby, Green: Operation Wire Color: Red: Positive, Black: Negative Yellow: NC, White: COM, Green: NO
