ZKTeco USA ML10-ID Fingerprint and RFID Card Door Lock Data Sheet

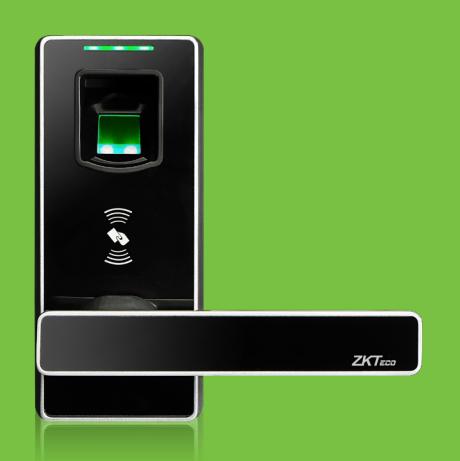

ML10-ID

fingerprint and RFID card door lock It's a DIY plug 'n play door lock replacement to your old "lock 'n key" door knob. Includes Bluetooth & Mobile app.

Features and Benefits

• Peace of mind: Fingerprint sensor prevents accidental lockout due to forgetting your key, ID card or PIN code.

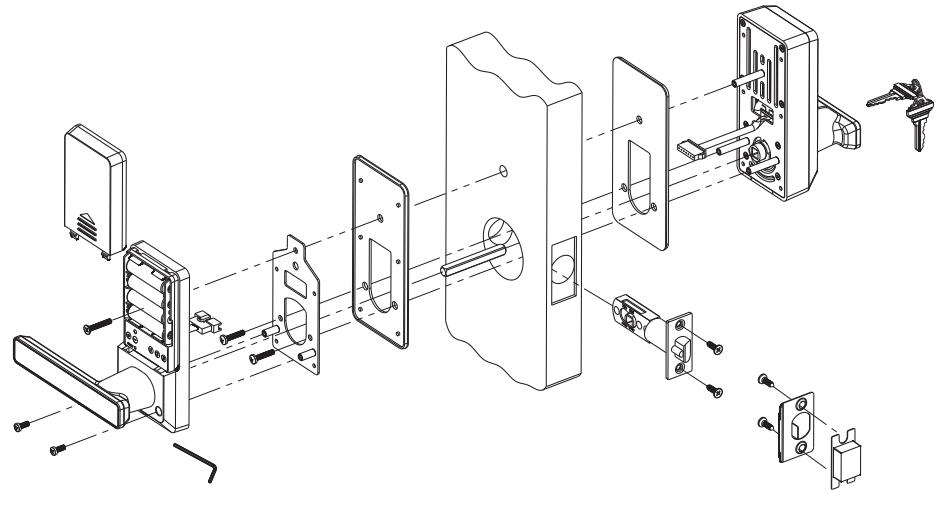

• Easy installation: No wiring. Fits door widths 1 3/8" to 2 3/8". Single latch and reversible handle design
• Rugged: Zinc alloy body and strong handle design prevents forcible entry.
• Reliable: Patented independent clutch-motor design
• Secure: Advanced highly accurate fingerprint sensor recognizes up to 60 users (Admins, Normal and Temporary users).
• Low power consumption: 4 AA batteries discharge only when a user is detected.
• Low battery warning
• Metal override key for emergency access: Override Key near impossible to copy.
• Audio and Visual Feedback: LED indicator and built-in buzzer

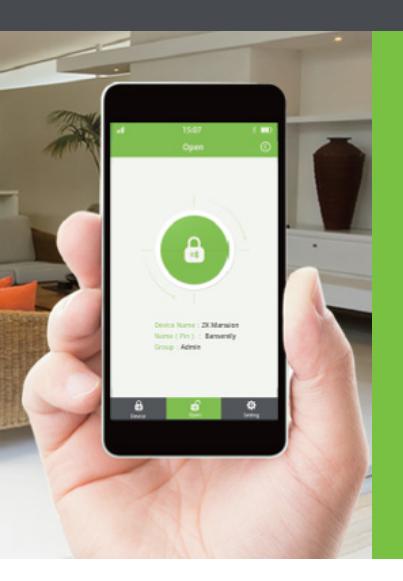

• Bluetooth and mobile app: Allows for remote door unlock and user management

Specifications

	Material: Zinc Alloy
	Admin - 10 users
User Capacity:	Normal - 60 users
	Temporary - 20 users
Operating Temperature:	32o - 112o F (0o - 40o C)
Power Supply:	4 x AA Batteries (not included)
Backup Unlocking:	Mechanical Key and 9V battery
Dimensions: Front:	2.7(W) x 6.1(L) x 1.3(D) in
	69(W) x 155(L) x 35(D) mm
Back:	2.7(W) x 6.1(L) x 1(D) in
	69(W) x 155(L) x 25(D) mm

Part Numbers

ML10-ID

Silver & Black Fingerprint Door lock w/ Bluetooth

ZKTeco USA

6 Kingsbridge Road, Unit 8, Fairfield, NJ 07004 Phone: (862) 505-2101 • Fax: (862) 204-5906 • sales@zkaccess.com • www.zkaccess.com
