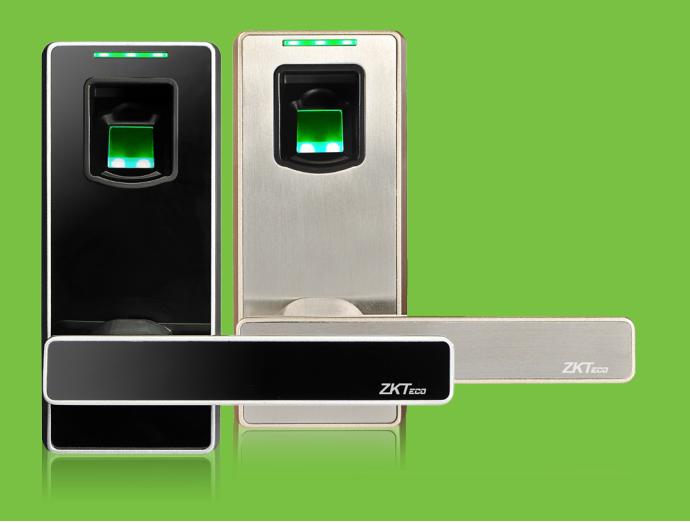

ML10

fingerprint door lock

It's a DIY plug 'n play door lock replacement to your old "lock 'n key" door knob.

Features and Benefits

• Peace of mind: Fingerprint sensor prevents accidental lockout due to forgetting your key, ID card or PIN code.

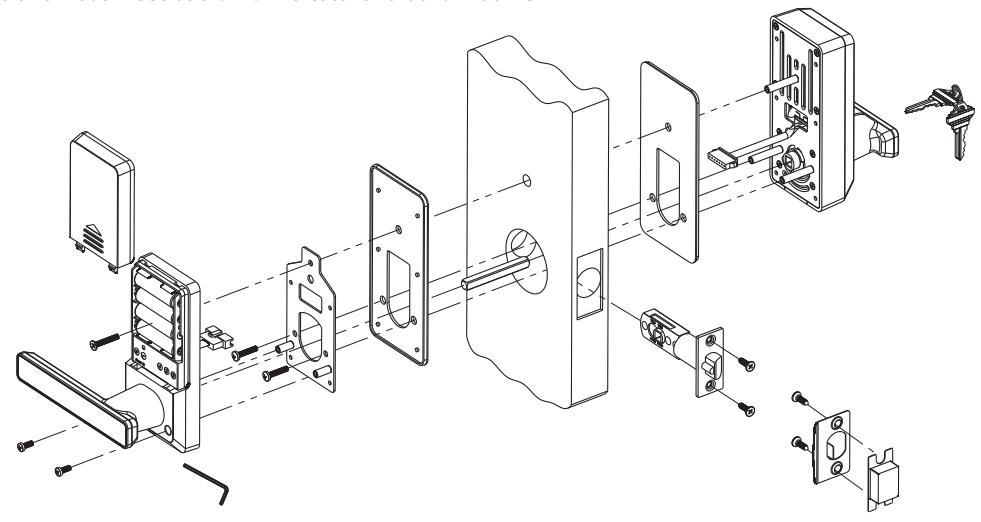

• Easy installation: No wiring. Fits door widths 1 3/8" to 2 3/8". Single latch and reversible handle design
• Rugged: Zinc alloy body and strong handle design prevents forcible entry.
• Reliable: Patented independent clutch-motor design
• Secure: Advanced highly accurate fingerprint sensor recognizes up to 60 users (Admins, Normal and Temporary users).
• Low power consumption: 4 AA batteries discharge only when a user is detected.
• Low battery warning
• Metal override key for emergency access: Override Key near impossible to copy.
• Audio and Visual Feedback: LED indicator and built-in buzzer

Specifications

Material: Zinc Alloy
Admin - 10 users
Normal - 60 users
Temporary - 20 users
32o - 112o F (0o - 40o C)
4 x AA batteries (not included)
Mechanical Key and 9V battery
2.7(W) x 6.1(L) x 1.3(D) in
69(W) x 155(L) x 35(D) mm
2.7(W) x 6.1(L) x 1(D) in
69(W) x 155(L) x 25(D) mm

Part Numbers

ML10-S

Silver & Black Fingerprint Door lock

ML10-G

Gold & Black Fingerprint Door lock
