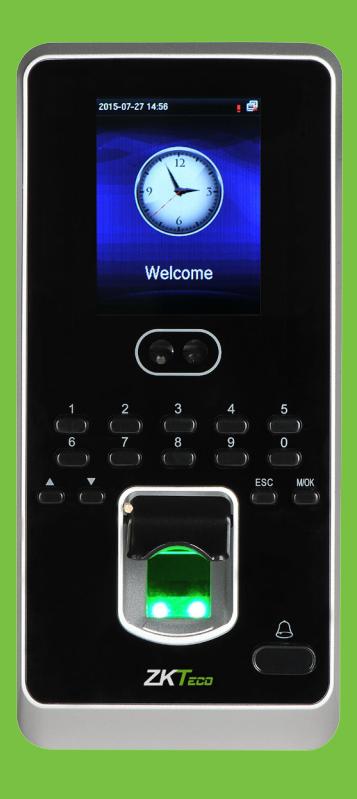

MB800 -ID

Multi-biometric Access Control

Modern, accurate and affordable fingerprint, facial and RFID reader

Multi-biometric technology:

Identify or verify users by their face, fingerprint, proximity card or PIN/password... or any combination, all conveniently from a single device. Built-in infrared light source enables operation in dimly lit rooms.

Communication:

MB800-ID installs easily on your network having both TCP/IP and RS232/485 serial ports. Its USB port allows for offline data backup and management when the network is unavailable.

Capacity:

Supports one to many (1: N) matching for up to 1,500 faces and 4,000 fingerprint templates and 10,000 cards/badges. Stores up to 100,000 transactions.

Options:

MB800-ID can be configured with optional internal modules which read HID Prox, HID iclass or 13.56 MHz Mifare cards.

Display/Audio:

Stunning 2.8" color TFT touch screen provides ease of use and rich user experience with intuitive and user friendly GUI. Includes both voice and visual prompts which indicate the acceptance or rejection of fingerprint, face, prox card or PIN/Password.

Access control:

Contact Relays for door locks, exit button, alarms & bell. Supports 50 time zones, 99 groups and 10 unlock combinations. Wiegand IN and OUT ports can be used to connect MB800-ID to any ZK or 3rd party access control panels and peripherals.

For Software Developers:

Free SDK and development tools are available for developers/partners who wish to integrate MB800-ID with any application which requires verifying people. Custom development is also available for OEM partners upon request.

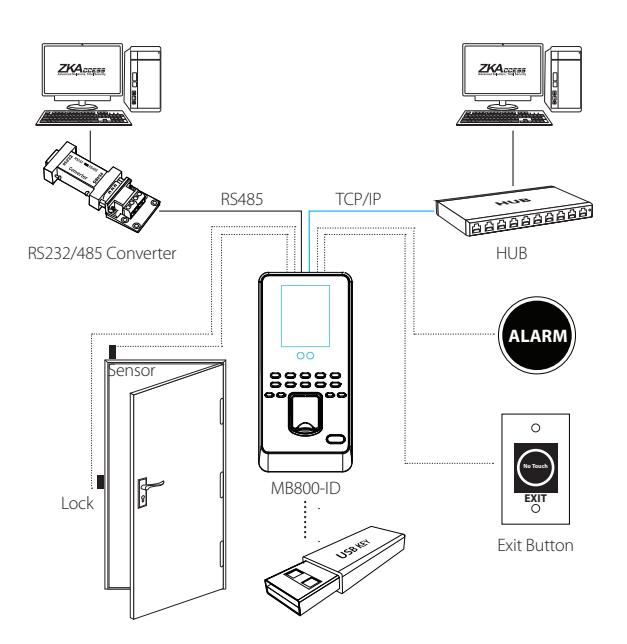

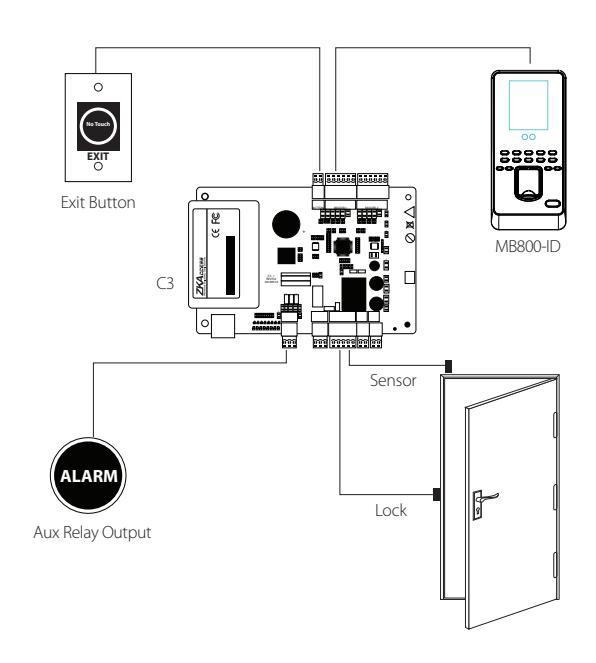

Standalone Installation Installation with Access Control Panel

Specifications

Capacity

Face: 1,500 Fingerprint: 4,000 Cards: 10,000

Display

2.8 inch TFT Touch Screen Display

Camera and Light Source

640 x 480 pixel camera

Highly efficient infrared light source

Power

12V DC, 3A

Communication

Ethernet, RS232, RS485, Weigand Input and Output, USB Host

Environment

Operating Temperature: 32º to 113º F ( 0º to 45º C) Operating Humidity: 20% to 80%

Dimensions

Height: 7.4 in (18.8 cm) Width: 3.5 in (8.8 cm) Thickness: 2.5 in (6.5 cm) Weight: 3lbs (1.36 kg)

Supported Card Formats

ZKAccess 125 kHz prox HID 125 kHz prox HID iClass Mifare

Part Numbers

MB800-ID: with ZKAccess prox card reader MB800-HID: with HID 125 kHz prox card reader MB800-Mifare: with Mifare card reader MB800-iClass: with HID iClass prox card reader
