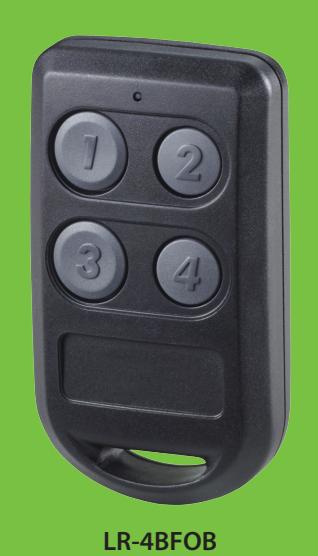

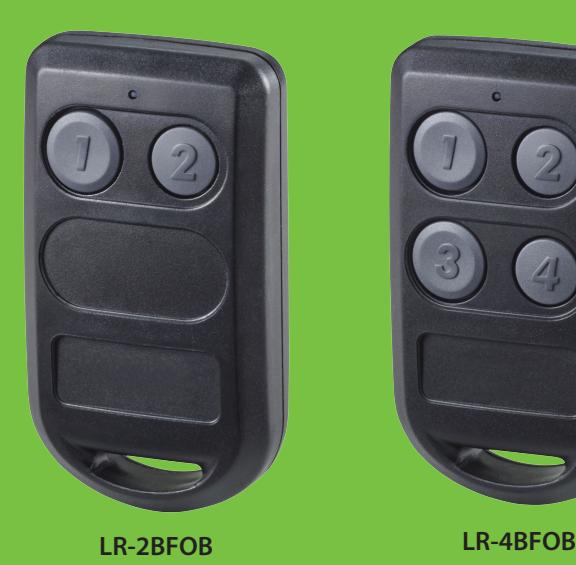

Long Range 2 and 4-button Fobs
ZKAccess long-range fobs are designed to work only with ZKAccess long-range readers and KR500H Series RFID readers.
ZKAccess LR series readers and fobs set the electronic security benchmark for high frequency, long-range identification.
| Specifications: | LR-2BFOB and LR-4BFOB |
|---|---|
| Technology | Long Range |
| Frequency | 433MHz |
| Range | Up to 200 feet (60M) |
| LED | Integrated red LED standard (activated upon button press) |
| Transmission | Rolling code + encryption |
| Color | Black Polycarbonate enclosure with gray ABS keys |
| Indoor & Outdoor Installation | Electronics sealed in a weather-resistant, UL listed enclosure |
| Communication Interface | Wiegand (26 bit industry standard and custom Wiegand formats) |
| Power Supply | Single replaceable CR2032, 3.3V, lithium battery |
| IP-rating | 65 |
| Operating Temperature | -40° F to 122° F (–40° C to +50° C) |
| Dimensions (H×W×D) | 1.45" W × 2.5" H × 0.56" D (37 mm × 63.5 mm × 14.2 mm) |
| Weight | 0.7 oz (20 g) |
| Certifications | FCC, CE, ICC, UL Standard 294 |
