LR-UHF-30

Long range Receiver

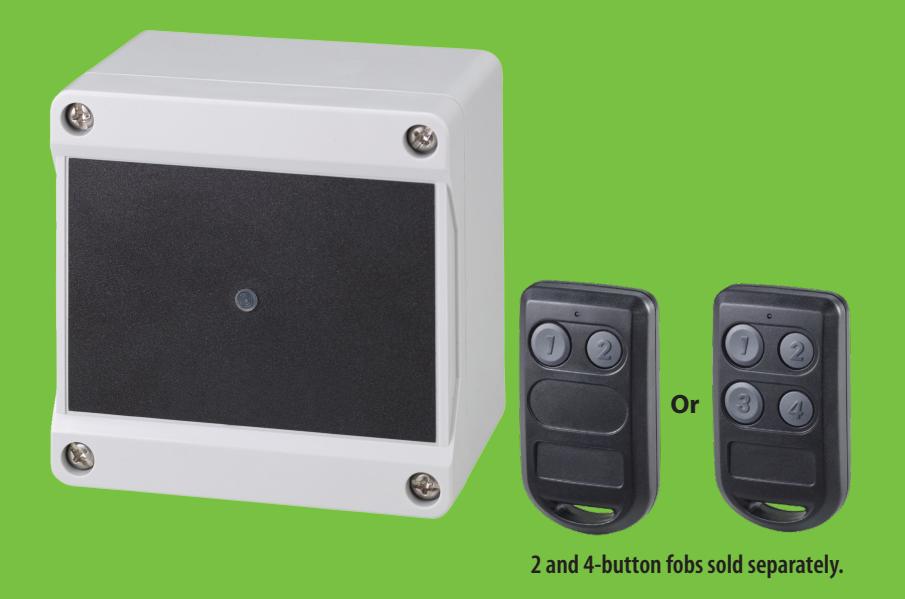

LR-UHF-30 is an outdoor IP67-rated 433MHz long range receiver designed specifically for ZKAccess long-range fobs.

With its 100 feet (30M) read-range, LR-UHF-30 provides users convenient long range authentication for many applications including door access, vehicular gate access and any application in which the user no longer needs to have their credential held in close range to the reader.

LR-UHF-30 has a built-in Wiegand-Out port which can be connected to most any access control panel (including ZKAccess C3 and InBio door controllers).

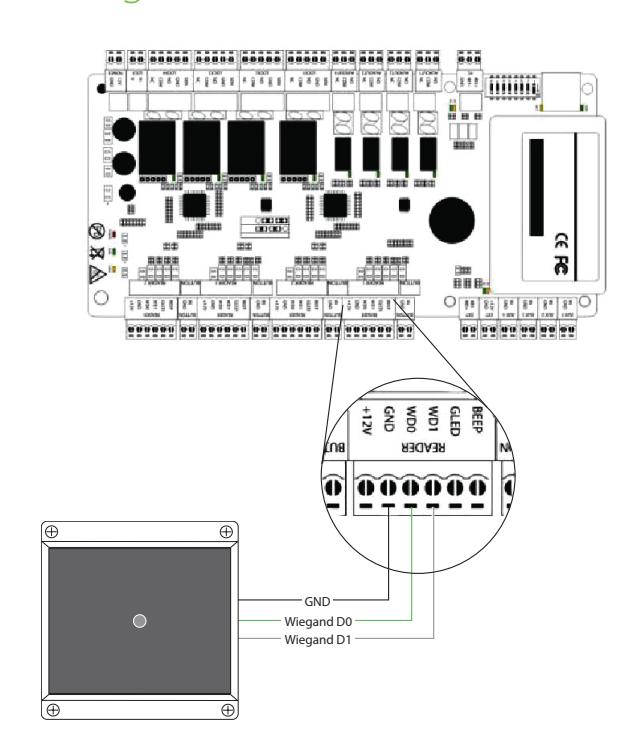

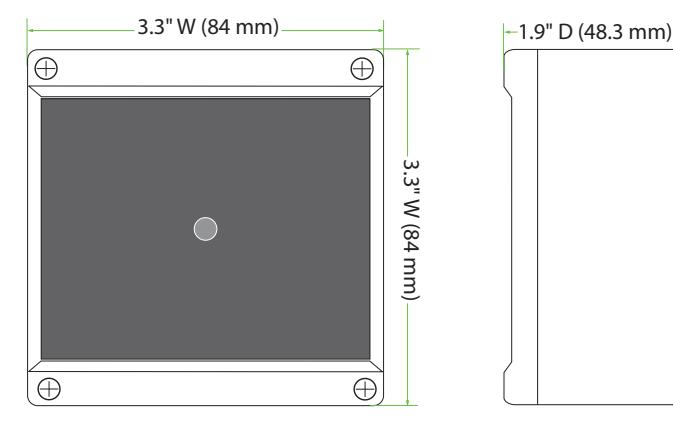

Configuration Dimensions

Specifications

Technology	Long Range
Supported media	ZKAccess 2 and 4-Button Long-Range fobs (sold separately)
Frequency	433MHz
Range	Up to 100 feet (30M)
Transmission	Rolling code + encryption
Color	Off-white plastic enclosure with black label
Indoor & Outdoor Installation	Electronics sealed in a weather-resistant, UL listed enclosure
Communication Interface	Wiegand (26 bit industry standard and custom Wiegand formats)
Power Supply	12V DC nominal
Current	80 mA typical @ 12V DC
IP-rating	67
Operating Temperature	–40° F to 149° F (–40° C to +65° C)
Dimensions (H×W×D)	3.3" W × 3.3" H × 1.9" D (84 mm × 84 mm × 48.3 mm)
Certifications	FCC, CE, ICC, UL Standard 294
