LB 7000

Universal "Lock-Down" box for ZKAccess C3 and InBio door controllers

LB7000 is a modified ZKAccess model SC700 (access control card reader) with a unique Lock Down feature (button) which allows only authorized users to universally lock down all doors (connected to a ZKAccess C3 or InBio door controller) within a specified grouping.

Note during a lock down condition, none of the locked-down doors can be opened until authorized users press the Recover button on the LB7000 on-screen display.

Using model LB7000 as a "lock box" to lock down all your doors with a single command is fast & simple to program and operate.

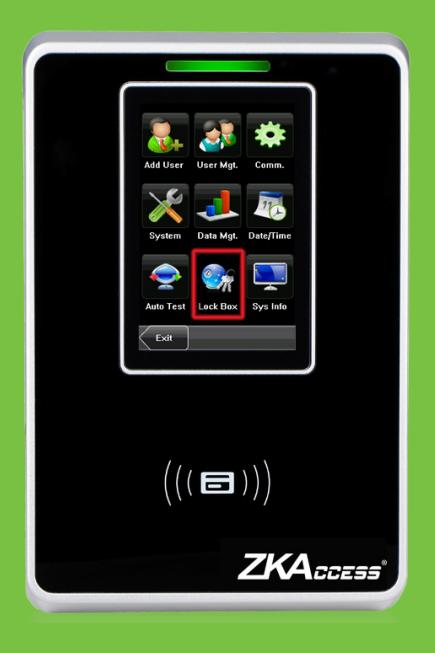

When initiating a "lock down", simply access the LB7000 on-screen Main menu, select Lock Box and then select the group(s) of doors you wish to lock down. When ready to re-open all the locked doors, authorized user(s) simply select Recover on the LB7000 to resume all normal door access control permissions & schedules.

It's that simple!

LB7000 comes standard with a ZKAccess 125 KHz 26-bit (non-HID) RFID reader. Available options include HID, HID iClass and Mifare card readers.

Key Features

• 1-touch universal lockdown & recovery of pre-defined doors
• 3-inch color TFT touch screen display for easy user navigation
• Standard ZK 125 KHz EM card reader. Optional HID, HID iClass and Mifare card reader

Specifications

Display	3-inch color TFT
Communication	TCP/IP, USB Host
Standard Functions	Configure door groupings, universal lock down, universal recovery, single & dual factor ID card and password authentication
Optional Functions	HID, HID iClass, Mifare Card reader
Power Supply	12V/3A
Operating Temperature	32F - 113F
Operating Humidity	20% - 80%
Dimensions (H×W×D)	6.3 x 4.1 x 1.5 inches

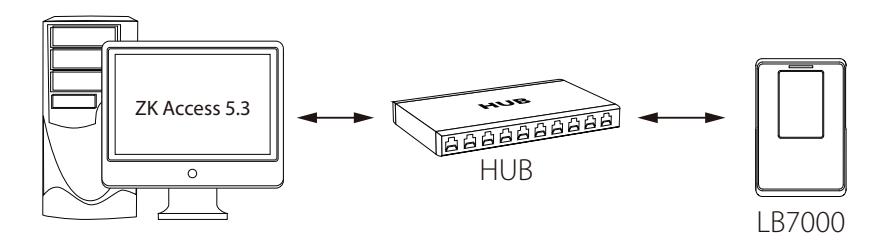

Configuration

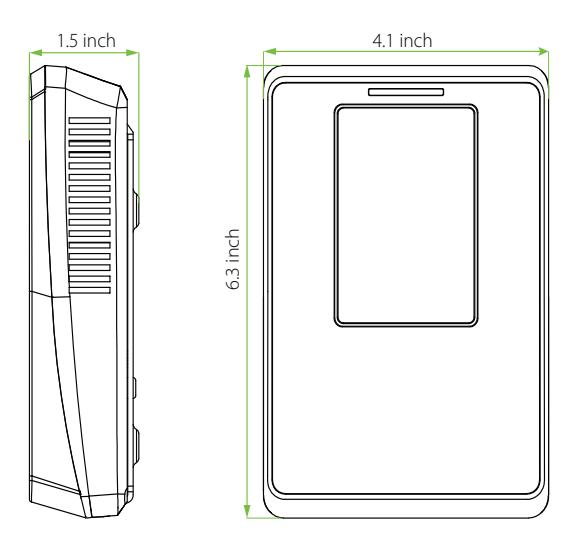

Dimensions

ZKTeco USA

6 Kingsbridge Road, Unit 8, Fairfield, NJ 07004 Phone: (862) 505-2101 • Fax: (862) 204-5906 • sales@zkaccess.com • www.zkaccess.com
