ZKTeco USA InPulse+Multi-Biometric Finger Vein & Fingerprint Access Control Reader Data Sheet

Open the original PDF document

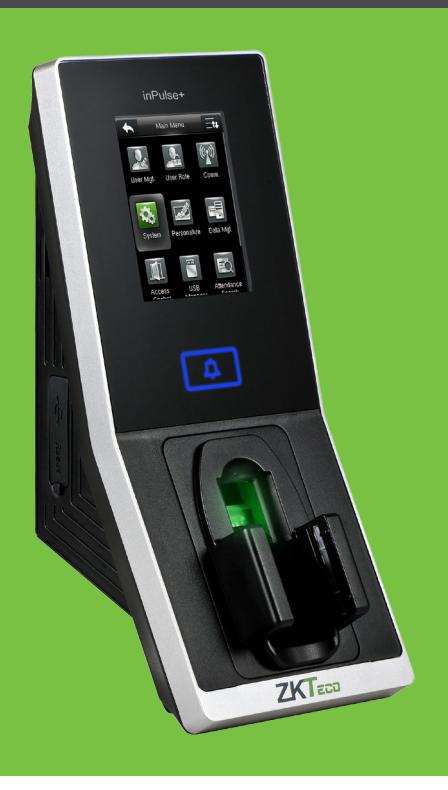

inPulse+

Multi-Biometric Finger Vein & Fingerprint Access Control Reader

inPulse+ is a multi-biometric reader capable of capturing and processing BOTH finger vein pattern & fingerprint biometric data at the same time.

Biometric Performance:

Combines revolutionary SilkID fingerprint sensor and powerful finger vein pattern sensor to achieve the highest degree of accuracy. Identifies users in less than 2 seconds.

Communication:

Weigand output for when connecting to an access control panel and Ethernet port for fast and reliable network communication.

Capacity:

Stores up to 1,000 finger vein and 1,000 fingerprint templates. Data can be backed up to a USB flash drive and transferred to another inPulse+ in the absence of network connectivity.

Options:

Internal Proximity Card or Mifare Card reader allows dual factor authentication for access control.

Easy Operation and Management:

Works without a computer. Complete setup and programming can be done via the "inPulse+ keypad and embeded firmware. Audio-Visual indication for acceptance and rejection of valid/invalid fingerprints, cards and passwords.

Access control:

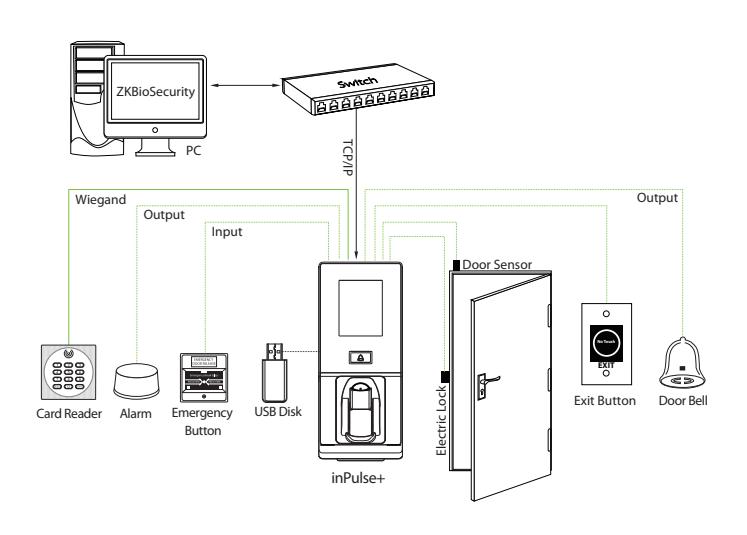

Relay Outputs for electric lock and alarm. Inputs for door status sensor and request to exit hardware. Supports multiple time zones and personnel groups for programming valid entry zones.

For Software Developers:

Free SDK and development tools are available for developers/partners who wish to integrate inPulse+ with any application which requires verifying people. Custom development is also available for OEM partners upon request.
