inBridge

ZKAccess management software conveniently pre-installed in a secured box

inBridge drastically reduces ZKAccess software installation time by eliminating the need to download software.

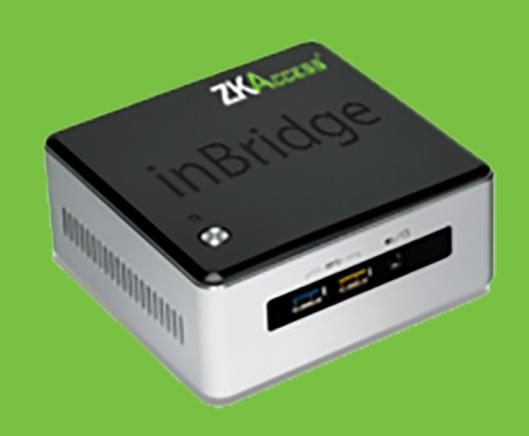

inBridge is a single-purpose management appliance which comes pre-installed with ZKAccess software. inBridge provides both added security and convenience when installing ZKAccess management software.

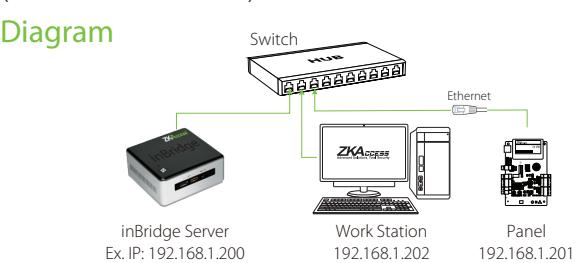

Simply power on and access the inBridge appliance via a web browser, configure the inBridge network settings, and start adding doors.

The pre-installed ZKAccess software includes modules for access control, video surveillance and elevator control. Simply purchase and enter the associated ZKAccess license key if you wish to turn on any of our complimentary modules. No software downloads are necessary. Everything you'll possibly need is pre-installed in the inBridge appliance.

Using inBridge ensures installers no longer risk being challenged by the customer's firewall or poor Internet connections when downloading software. And since inBridge is a single-purpose applicance, installers can be assured no latency issues can arise due to conflicting 3rd party applications.

Features

CPU

N3050 Intel Celeron Processor

Memory

8 GB DDR3L SODIMM RAM

Storage

128 GB 2.5" SSD, SDXC slot

Connectors And WLAN

10/100/1000 Mbps Ethernet, 802.11ac wireless, Bluetooth 4, 4x USB 3.0, 2x USB 2.0, Infrared sensor

Power Supply

19V, 65W wall-mount AC-DC power adapter

Dimensions

4.5 x 4.5. x 2 inches, VESA mount bracket (114 x 114 x 50 mm)
