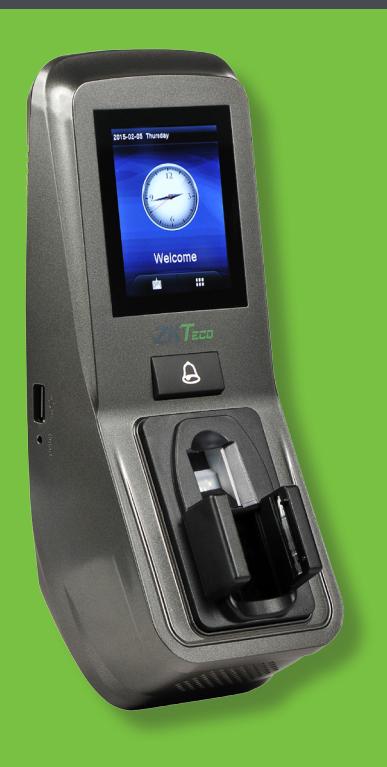

FV350 -ID

Multi-biometric Finger Vein and Fingerprint recognition technology based Standalone Access Control Reader

Multi-biometric technology:

Identify or verify users by their finger-vein, fingerprint, proximity card or PIN/password... or any combination, all conveniently from a single device.

Communication:

FV350-ID installs easily on your network having both TCP/IP and RS232/485 serial ports. Its USB port allows for offline data backup and management when the network is unavailable.

Capacity:

Supports one to many (1: N) matching for up to 1,000 finger-vein templates and 1,000 fingerprint templates and 2,000 cards/badges.

Options:

FV350-ID can be configured with optional internal modules which read HID Prox, HID iclass or 13.56 MHz Mifare cards.

Display/Audio:

Stunning 2.8-inch color TFT touch screen provides ease of use and rich user experience with intuitive and user friendly GUI. Includes both voice and visual prompts which indicate the acceptance or rejection of fingerprint, finger-vein, prox card or PIN/Password.

Access control:

Contact Relays for door locks, exit button, alarms & bell. Supports 50 time zones, 99 groups and 10 unlock combinations. Wiegand IN and OUT ports can be used to connect FV350-ID to any ZK or 3rd party access control panels and peripherals.

For Software Developers:

Free SDK and development tools are available for developers/partners who wish to integrate FV350-ID with any application which requires verifying people. Custom development is also available for OEM partners upon request.

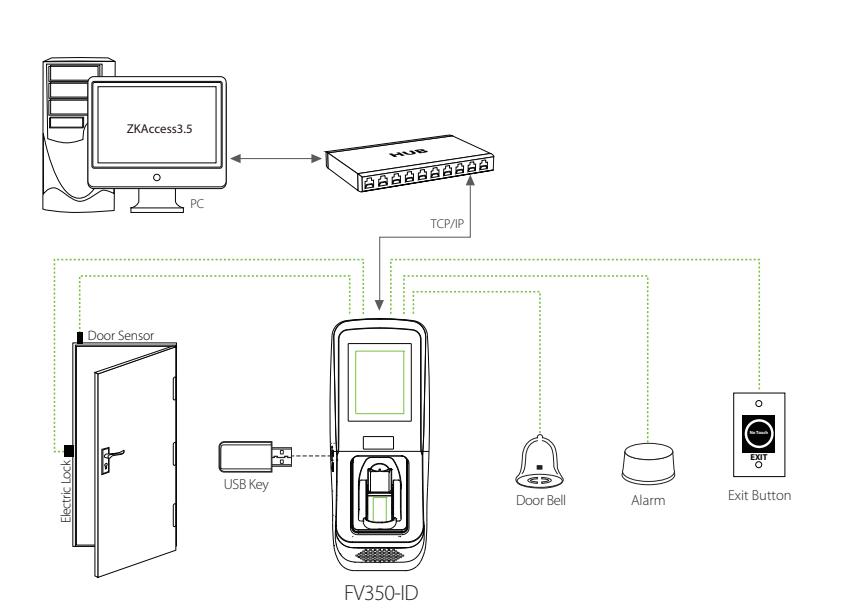

Standalone Installation

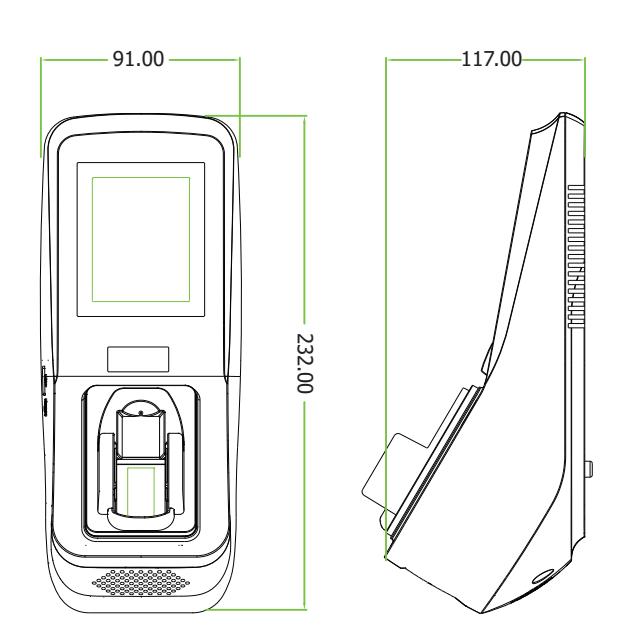

Dimensions (mm)

Specifications

Capacity

Finger vein: 1,000 templates Fingerprint: 1,000 templates RFID Cards: 2,000 cards (optional)

Communication

Ethernet: 10/100 Mbps TCP/IP, Weigand: Input and Output (Supports 26 bit to 66 bit format), (Also supports Special Relay box-SRB)

USB: USB Host

Dimensions

Length: 9.15 inches ( 23.2 cm) Width: 3.58 inches (9.1cm) Depth: 4.6 inches (11.7cm)

Power:

Power Consumption: 9W @12 VDC, 750mA (12V DC , 3A power supply included in the box)

Display

2.8 inch TFT Touch Display

Environment

Operating Temperature: 14o F - 113o F (-10o C - 45o C) Operating Humidity: 20%-80%

Supported Card Formats

ID Card HID Card Mifare Card

Part Numbers

with RFID card reader

with HID card reader

with Mifare card reader

ZKTeco USA

6 Kingsbridge Road, Unit 8, Fairfield, NJ 07004 Phone: (862) 505-2101 • Fax: (862) 204-5906 • sales@zkaccess.com • www.zkaccess.com
