ZKTeco USA FHT1000 Full Height Turnstile Data Sheet
Open the original PDF document
View PDF
Full Height Turnstile
FHT1000 Full Height Turnstile FHT1011 Full Height Turnstile
FHT1022 Full Height Turnstile

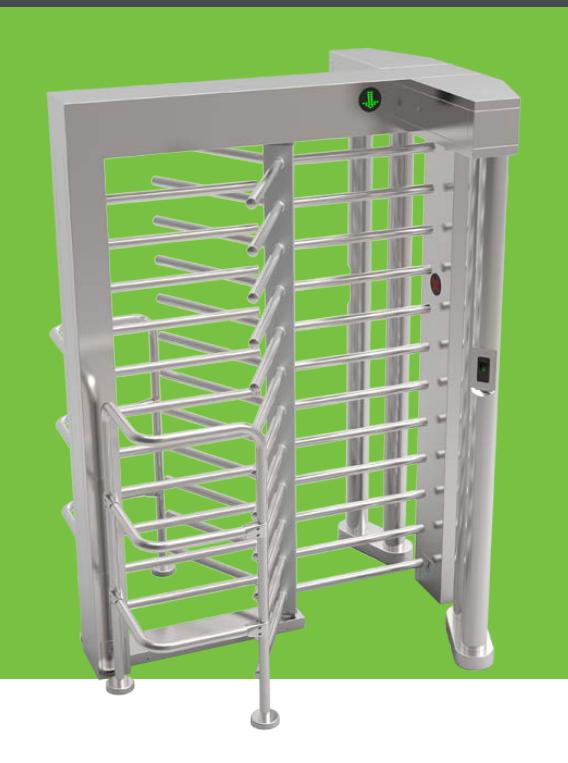

The ZKAccess FHT1000 Full Height Turnstile is a rugged cost-effective entrance control system designed for high-traffic volume.
FHT1000 is a full height turnstile series designed to provide the utmost perimeter security. The possibility of tailgating and "hop-overs" is completely eliminated.
Besides securing door entrances and interior lobbies, the perimeter security of a building is an important extra layer of protection from unauthorized visitors. FHT1000 is an all metal full height turnstile that is extremely durable & secure and is suitable for outside use. Its rugged construction ensures trouble free and dependable operation.
FHT1000 metal barriers are normally held in a locked position, thus denying passage to the secured side. Upon FHT1000's reader (RFID and/or fingerprint) positively recognizing a user's valid access card or fingerprint, its barriers unlock automatically, thus allowing users passage to the secured side.
During emergencies and power outages the barriers automatically unlock, thereby ensuring users FAST unencumbered exit to safety.
FHT1000 provides both security and convenience , all in a very durable yet clean design.
Built-in Reader Integration
- FHT1000 series ships already integrated with our customers' preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
- FHT1000 series and associated access control readers are all factory-tested prior to shipping.
- ZKAccess provides true plug 'n play turnstiles with the lowest possible total cost of ownership in the industry!
Specifications
| Power Supply | AC110V/220V, 50/60Hz | |
|---|---|---|
| Power consumption | Starting | 20W |
| Standby | 7W | |
| Unlock | 22W | |
| Working temperature | -28°F to 140°F | |
| Working humidity | 0% ~ 95% | |
| Working environment | Indoor/Outdoor | |
| Speed of throughput | RFID | Maximum 30/minute |
| Fingerprint | Maximum 25/minute | |
| Face | Maximum 15/minute | |
| Vein | Maximum 15/minute | |
| Lane width | 24 inches (60 mm) | |
| Footprint | 63 x 54 inches (1600 x 1380 mm) | |
| Dimension | 63(l) x 54(w) x 93(h) inches (1600(l) x 1380(w) x 2350(h) mm) | |
| Dimension with packing | 48(l) x 96(w) x 34(h) inches (1230(l) x 2450(w) x 860(h) mm) | |
| Net weight | 606 lbs (275kg) | |
| Weight with packing | 794 lbs (360 kg) | |
| LED indicator | Y | |
| Cabinet material | SUS304 Stainless Steel | |
| Barrier material | SUS304 Stainless Steel | |
| Barrier movement | Rotating | |
| Emergency mode | Y | |
| Security level | High | |
| MCBF | 2 million cycles | |

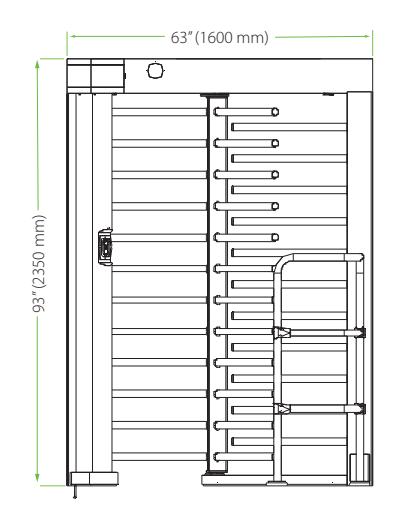

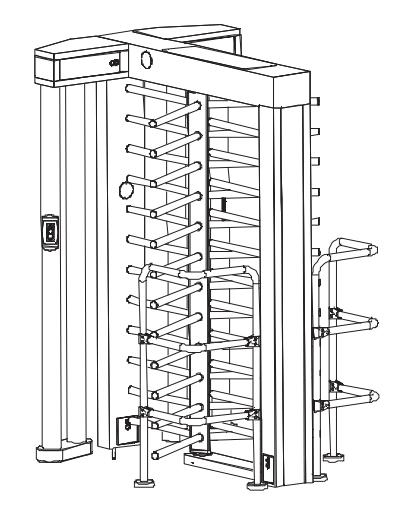

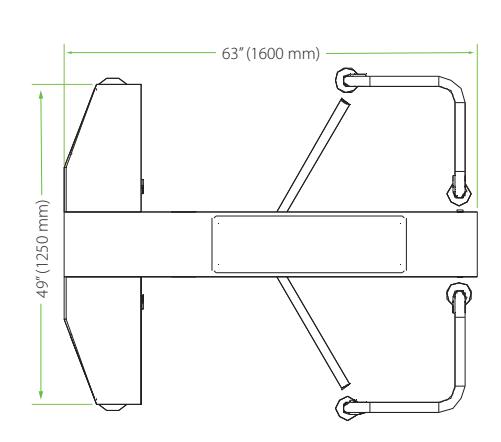

Dimensions
