FB3200 Series

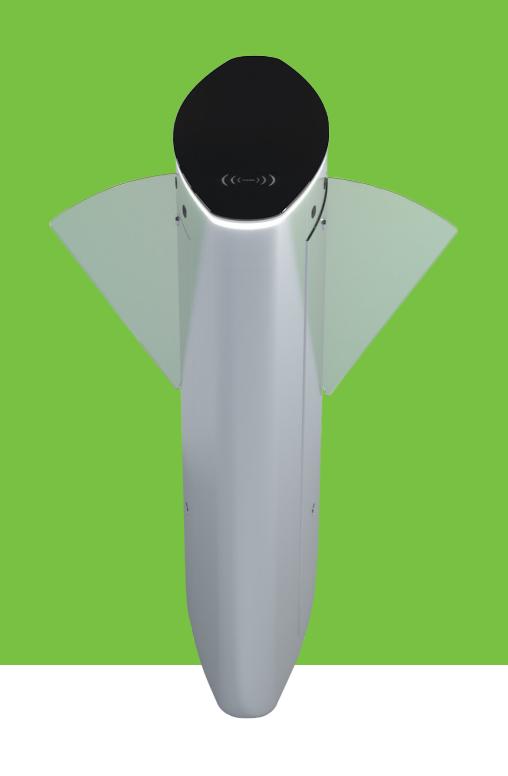

FB3200 2-Lane Flap Barrier Turnstile

FB3211 2-Lane Flap Barrier Turnstile

FB3222 2-Lane Flap Barrier Turnstile (w/ controller and combination fingerprint & RFID reader)

The ZKAccess FB3200 2-lane flap barrier turnstile is a compact and elegant cost-effective entrance control system designed for high-traffic volume.

The FB3200 is a 2-lane flap barrier turnstile series designed for smooth and silent operation and draws very little power. It's made of stainless steel which makes FB3200 highly durable. FB3200 is also surprisingly compact and designed to operate in small work places.

FB3200 tempered-glass barriers are normally held in a locked position, thus denying passage to the secured side. Upon FB3200's reader (RFID and/or fingerprint) positively recognizing a user's valid access card or fingerprint, its barriers retract upward automatically, thus allowing users passage to the secured side.

During emergencies and power outages the barriers automatically retract upward, thereby ensuring users FAST unencumbered exit to safety.

FB3200 provides both security and convenience , all in a very durable yet elegant compact design.

Built-in Reader Integration

• FB3200 series ships already integrated with our customers' preference for either card or fingerprint access control reader. This greatly reduces installation time & expense.
• FB3200 series and associated access control readers are all factory-tested prior to shipping.
• ZKAccess provides true plug 'n play turnstiles with the lowest possible total cost of ownership in the industry!

Specifications

AC 220V/110V, 50/60Hz
-18F to 140F degrees
5%-85%
Indoor/Outdoor (if sheltered)
120W
30 passages per minute
SUS304 stainless steel and tempered glass
Yes. Access granted/denied and walking direction (entry or exit)
Yes
Input controlled by dry contact
Yes
Triggers alarm upon detection of unauthorized users and tailgaters
39.4 (h) x 11.8 (w) x 47.2 (d) inches (100.4 x 30 x 120 centimeters + arm length 50 centimeters)
55.1 x 43.3 x 15.7 inches
189.6 lbs. (86 kg)
266.75 lbs. (121 kg).

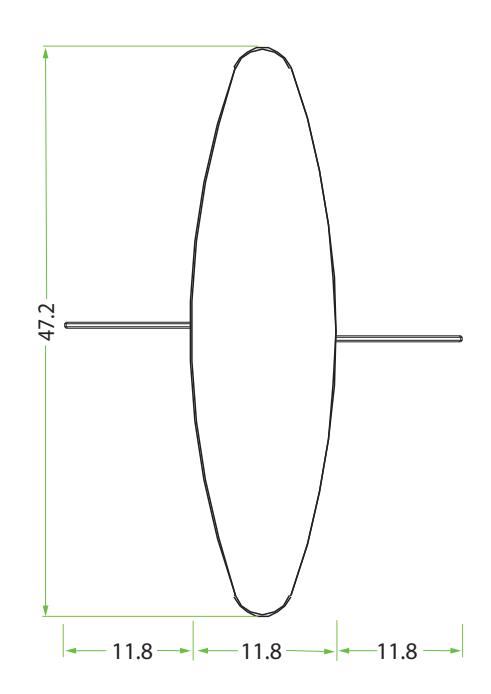

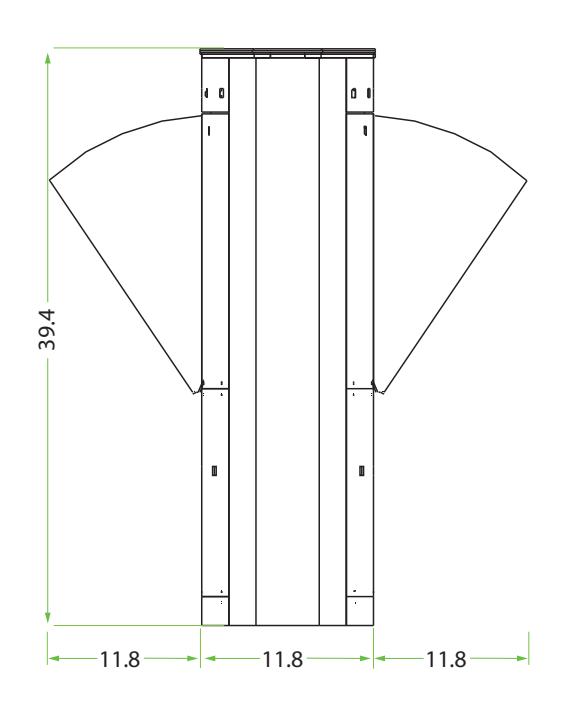

Dimensions (inches)
