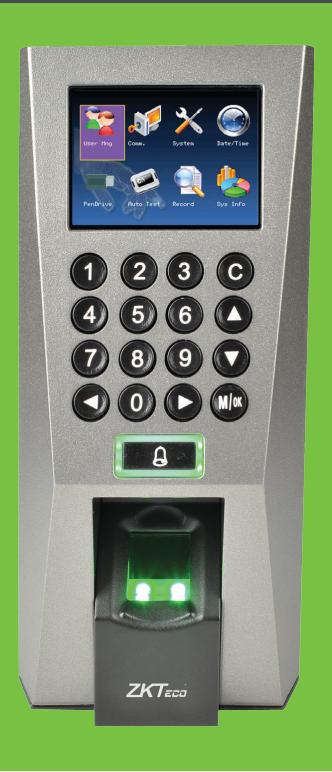

F18 -ID Standalone Fingerprint Reader Controller

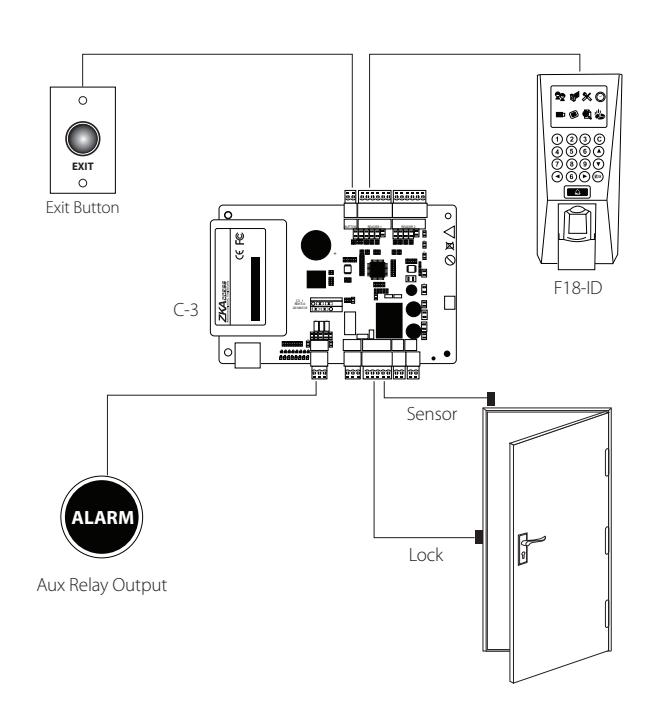

F18-ID is an indoor-rated standalone fingerprint reader which can be connected either directly to a door lock or any access control panel via Wiegand interface.

Biometric Performance:

Reliable, durable and highly accurate ZK fingerprint sensor with latest fingerprint matching algorithm which provides less than 1.5 second user recognition.

Communication:

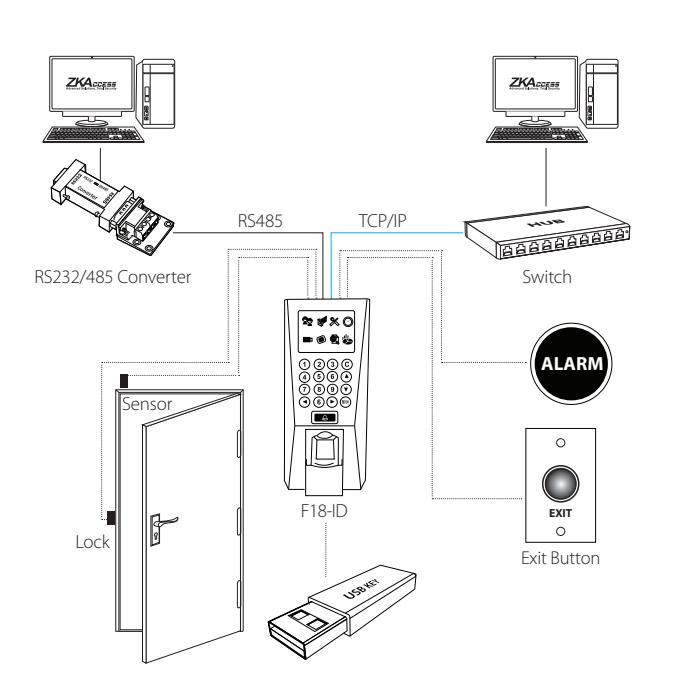

Weigand output for connecting to access control panel and Ethernet port for fast and reliable network communication.

Capacity:

Can store up to 3,000 templates and 30,000 transactions. The data can be backed up to a USB flash drive and can also be transferred to another reader in the absence of network connectivity.

Options:

F18-ID can be configured with optional internal modules which read HID Prox, or 13.56 MHz Mifare cards.

Full Access Control Built In:

Relay Outputs for electric lock and alarm. Inputs for door status sensor and request to exit hardware. Supports multiple time zones and personnel groups for programming valid entry zones.

Easy Operation and Management:

Works without a computer. Complete setup and programming can be done via the F18-ID's keypad and embeded firmware. Audio-Visual Indication for acceptance and rejection of valid/invalid fingerprints, cards and passwords.

For Software Developers:

Free SDK and development tools are available for developers/partners who wish to integrate F18-ID with any application which requires verifying people. Custom development is also available for OEM partners upon request.
