ZKTeco USA DL30DB-M Data Sheet
Open the original PDF document
View PDF
DL30DB-M
RFID card and Keypad door lock It's a DIY plug 'n play door lock replacement to your old "lock 'n key" door knob. Includes Bluetooth & Mobile app.
Features and Benefits
- Peace of mind: RFID card reader and keypad eliminates worry over who has copies of your old metal key.
- Voice Assist: Helps user with set-up and operations.

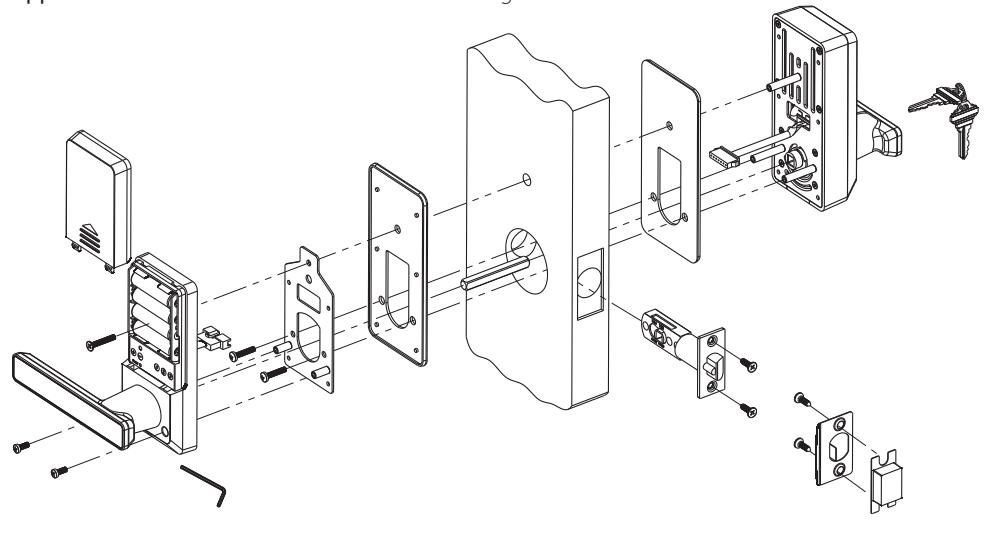

- Easy installation: No wiring. Fits door widths 1 3/8" to 2 3/8". German standard mortise with one latch and one deadbolt.
- Rugged: Zinc alloy body and strong handle design prevents forcible entry.
- Reliable: Patented independent clutch-motor design
- Secure: Strong zinc alloy body is vandal resistant.
- Low power consumption: 4 AA batteries discharge only when a user is detected.
- Low battery warning
- Metal override key for emergency access: Override Key near impossible to copy.
- Audio and Visual Feedback: LED indicator and built-in buzzer
- Reads Mifare cards.

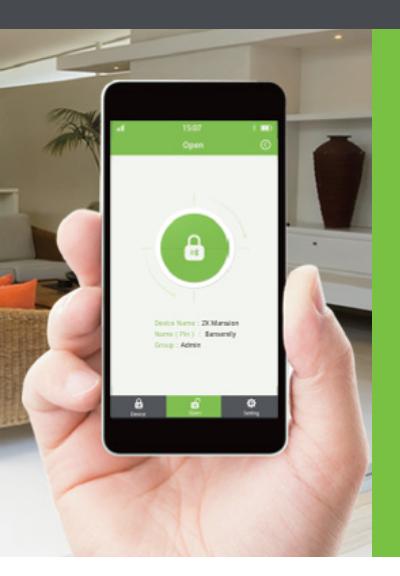

- Bluetooth and mobile app: Allows for remote door unlock and user management.
Specifications
| Material: Zinc Alloy | |
|---|---|
| User Capacity: | 100 card numbers |
| 100 PIN codes | |
| Operating Temperature: |
32o
- 112o F (0o - 40o C) |
| Power Supply: | 4 x AA Batteries (not included) |
| Backup Unlocking: | Mechanical Key and 9V battery |
| Dimensions: Front: | 2.7(W) x 6.1(L) x 1.3(D) in |
| 69(W) x 155(L) x 35(D) mm | |
| Back: | 2.7(W) x 6.1(L) x 1(D) in |
| 69(W) x 155(L) x 25(D) mm |
