ZKBioPack

Integrates ZKAccess IP-based Biometric readers with RS2 Technologies Access It! software

ZKAccess biometrics and RS2 Technologies' Access It! access control system enhances building security with minimal effort.

Numerous benefits derived from ZKBioPack:

• Simple ZKBioPack launches from Access It!.
• Flexible Supports different type ZKAccess readers.
• Scalable No limit on number of readers supported.
• Saves time. Installation & setup is fast and simple.
• Saves money. ZKBioPack is very affordable.
• Secure Use of Biometric readers ensures people requesting door access are who they say they are whereas ID badges can be misappropriated.
• Convenience Say good-bye to accidental lockouts due to ID cards & PIN codes being forgotten or misplaced.

ZKBioPack Features:

Access It! Integration:

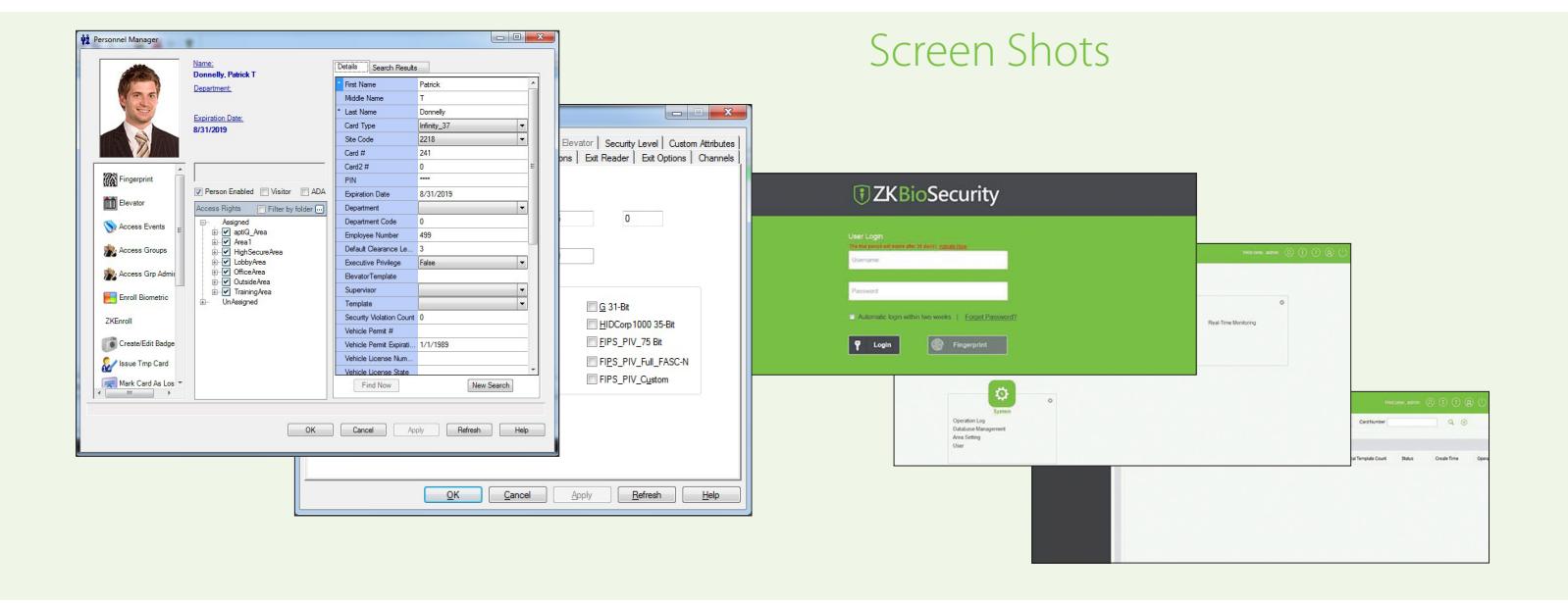

ZKBioPack is launched from within the Access It! GUI using the local workstation.

Biometric Enrollment:

Fingerprint and/or Face enrollment is fast & easy. After Access It! downloads the User ID's, simply enroll users' biometric credentials. After enrollment is complete, ZKBioPack synchronizes the biometric templates with the biometric readers at the doors.

Device Management:

ZKBioPack allows users to manage all the biometric readers at the doors from the Access It! interface.

Communication:

ZKBioPack communicates directly with Access It! while downloading user data and subsequently uploading that user data to the biometric readers at the doors.

Synchronization:

ZKBioPack synchronizes all relevant user data and biometric credentials amongst the biometric readers over the IP backbone.

Choice of Biometric Readers:

ZKAccess F18-ID and ProCapture-T-ID indoor Fingerprint and RFID reader ZKAccess TF1700 & TF1600 outdoor Fingerprint and RFID readers ZKAccess MB-800-ID Face reader and inPulse+ Finger Vein reader

Technical Specifications

• Software name:

ZKBioPack

• Display:

Full sized color display with dynamic messaging

• Advanced Template Management:

Yes

• Enrollment:

Standard and duress fingers enrolled on USB fingerprint reader.

• Database:

PostgreSQL(Default), SQL Server&Oracle (Optional)

• Supported Card bit- formats:

Wiegand 26 and Infinity 37

• Output:

Standard Wiegand output to Access It! access control panels for validation.

• Mifare & iClass card support:

Models MB700 & F18

• Multi Factor Authentication:

Models F18-ID, TF1700 and TF1600 support Fingerprint and/or PWD and/or Card.

Model MB800-ID supports Face and/or Fingerprint and/or PWD and/or Card also model inPulse+ Finger Vein reader.

• Power Loss:

Automatic Data Redistribution after connection loss

• Commissioning Tool:

For reader configuration and firmware updates

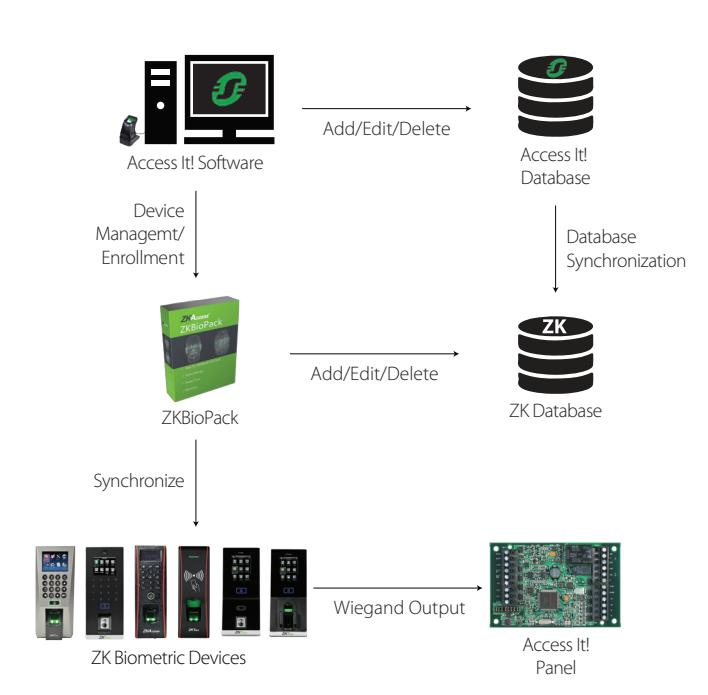

Wiring Diagram
